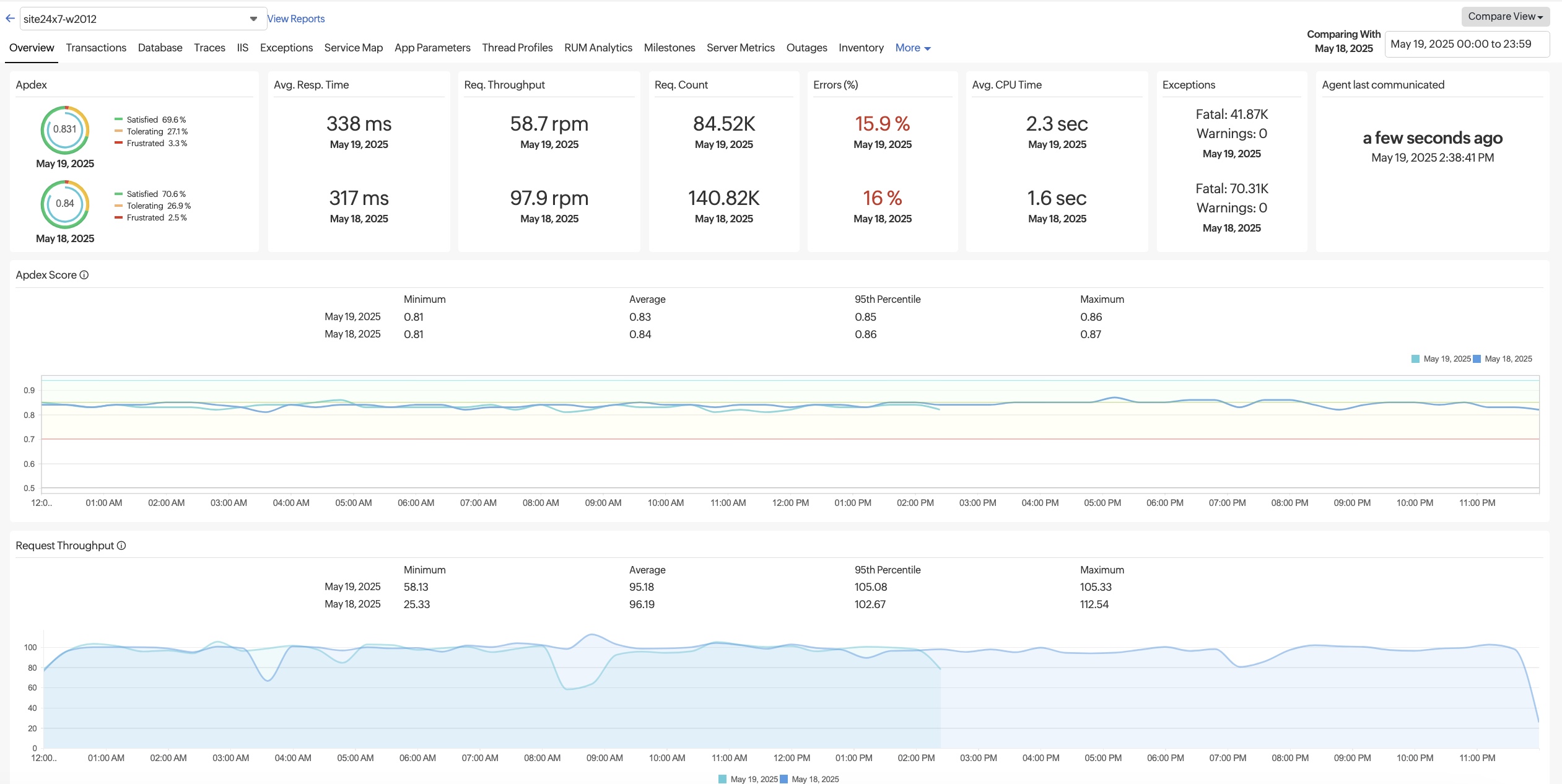

Compare Reports

Analyze your reports with insightful data by comparing the application's performance over a specific time period. Comparing Reports enables you to identify redundant errors and remove potential bottlenecks.

To Compare Reports:

1. Log in to the OpManager Nexus web client.
2. Navigate to APM > APM Insight > Applications.
3. Select your application and click the Date View dropdown.
4. Choose Compare View.
5. Specify the date and time range you wish to compare, then click Apply.
6. Click on the relevant graphs to explore detailed metrics and gain deeper insights.

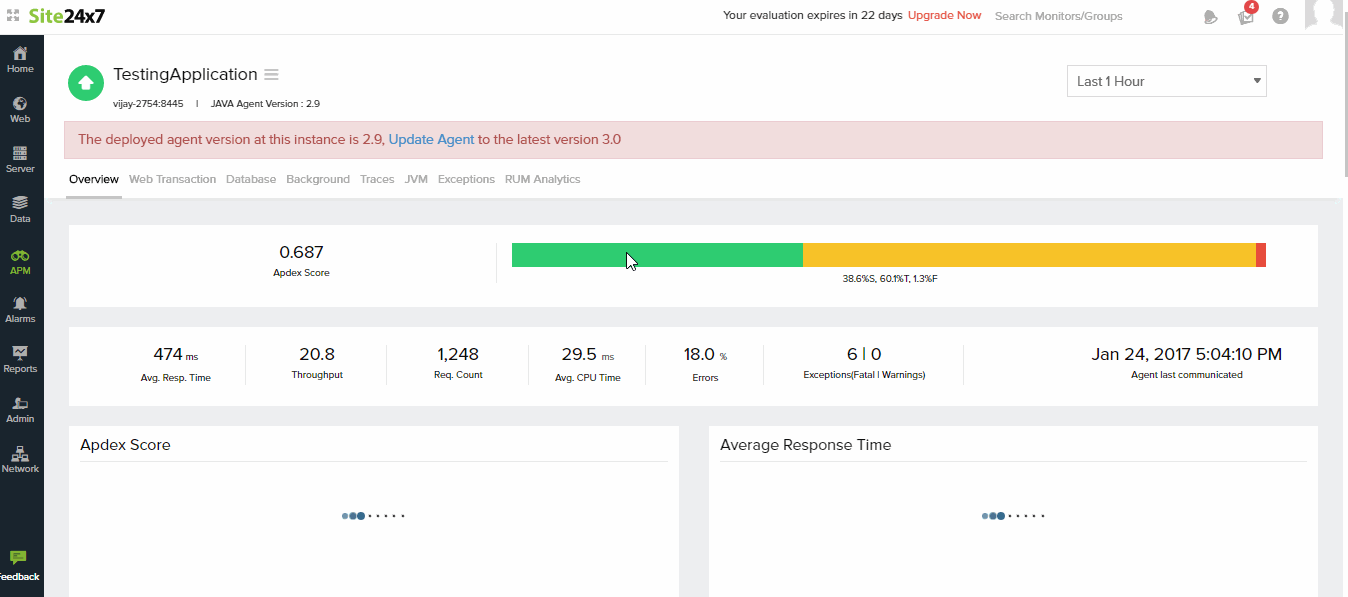

Overview:

1. The Overview tab provides a comprehensive outlook on metrics that are being compared, namely, Apdex Score, Average Response Time, Throughput, App Server Split Up, Exception Split Up and HTTP Error Split Up.
2. Click on the individual graphical plots or bar graphs to find out more about the respective metrics

Web Transaction:

1. This tab lists out all transactions for the chosen dates in the respective time period
2. Individual transaction details can be viewed by clicking upon the respective transactions

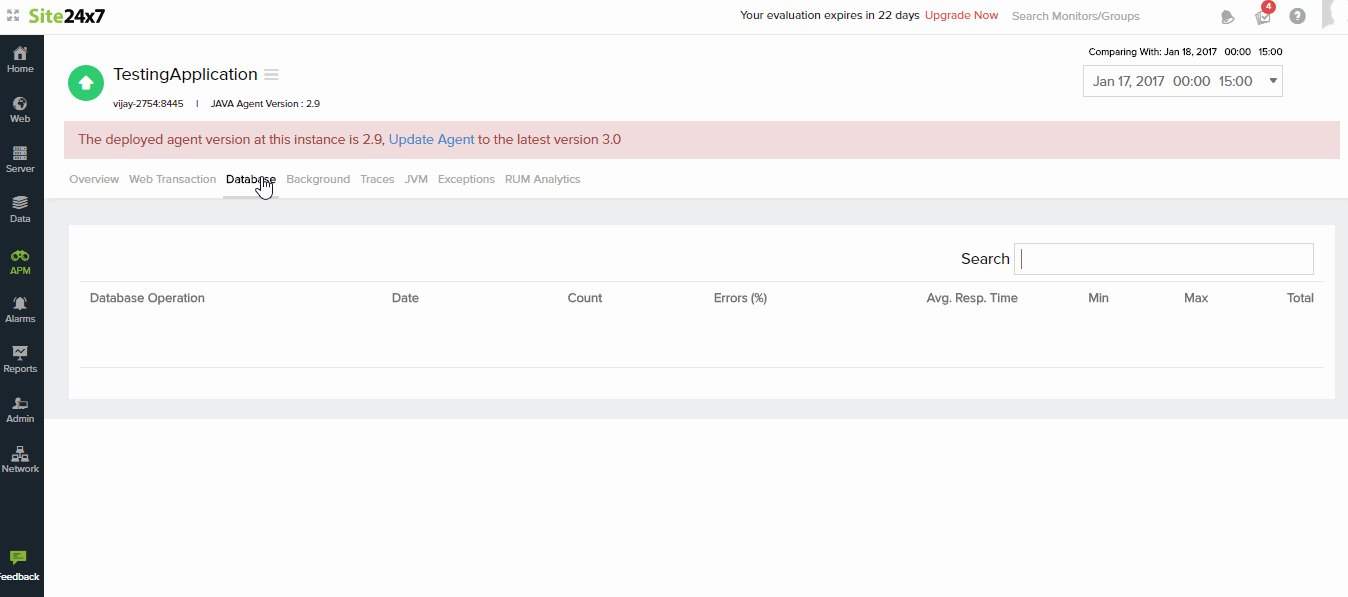

Database:

1. This tab lists out database operations for the chosen dates in the respective time period
2. Click on the respective Database operation to view detailed information about it

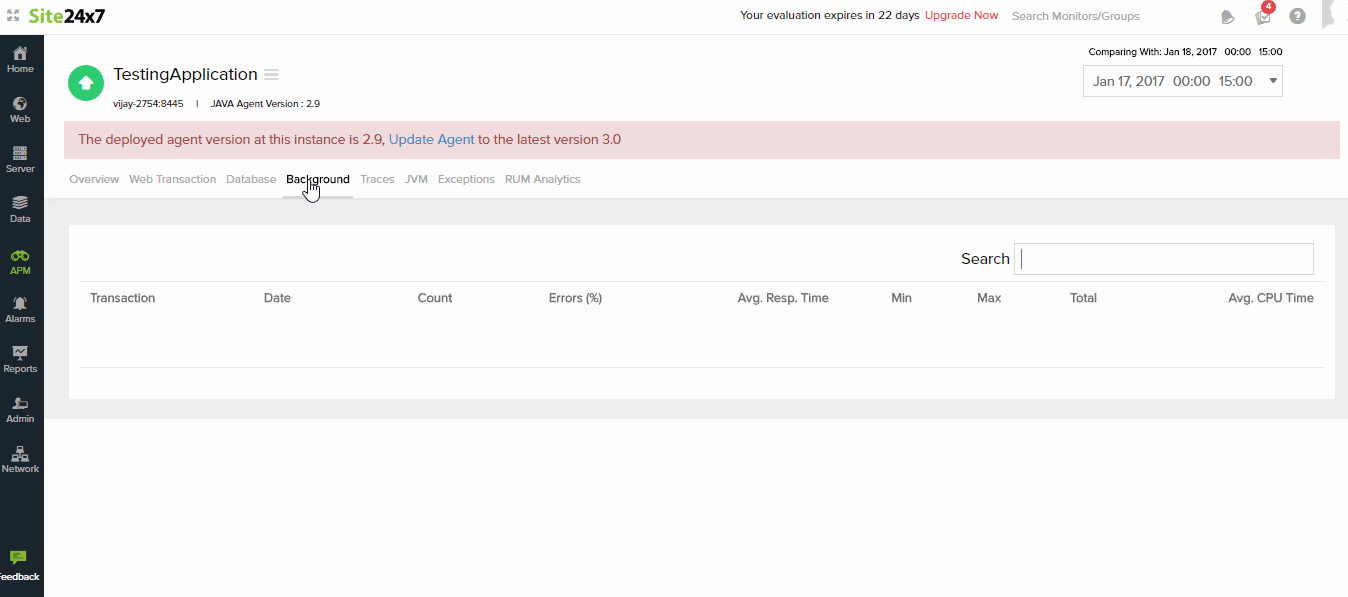

Background:

1. This tab lists out background transactions for the chosen dates in the respective time period
2. Details on individual transactions can be viewed by clicking upon the respective transactions

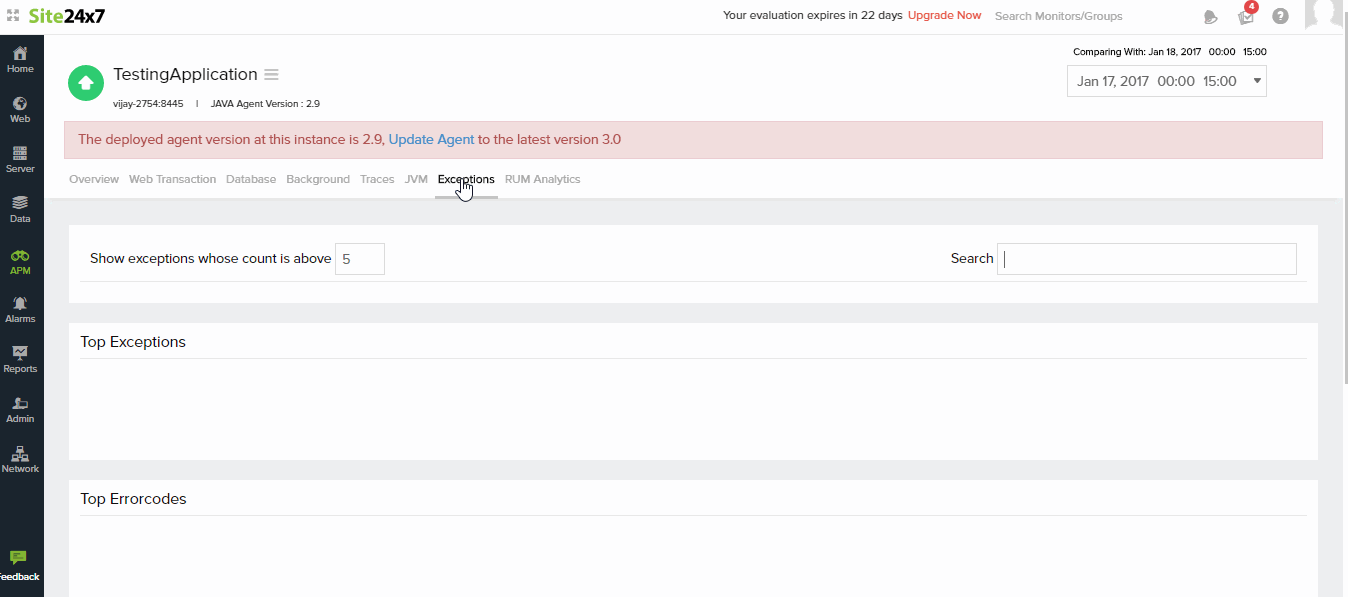

Exceptions:

1. The exceptions tab lists out the Top exceptions, Error Codes, Transaction Split up by Error codes and Exceptions
2. Transaction Split ups are represented by graphical bar codes
3. Click on the respective exception to view detailed information about it
