Export OpenTelemetry data to OpManager Nexus

Follow these steps to seamlessly export your OpenTelemetry data to OpManager Nexus APM Insight.

  1. Log in to your OpManager Nexus web client.
  2. Navigate to APM.

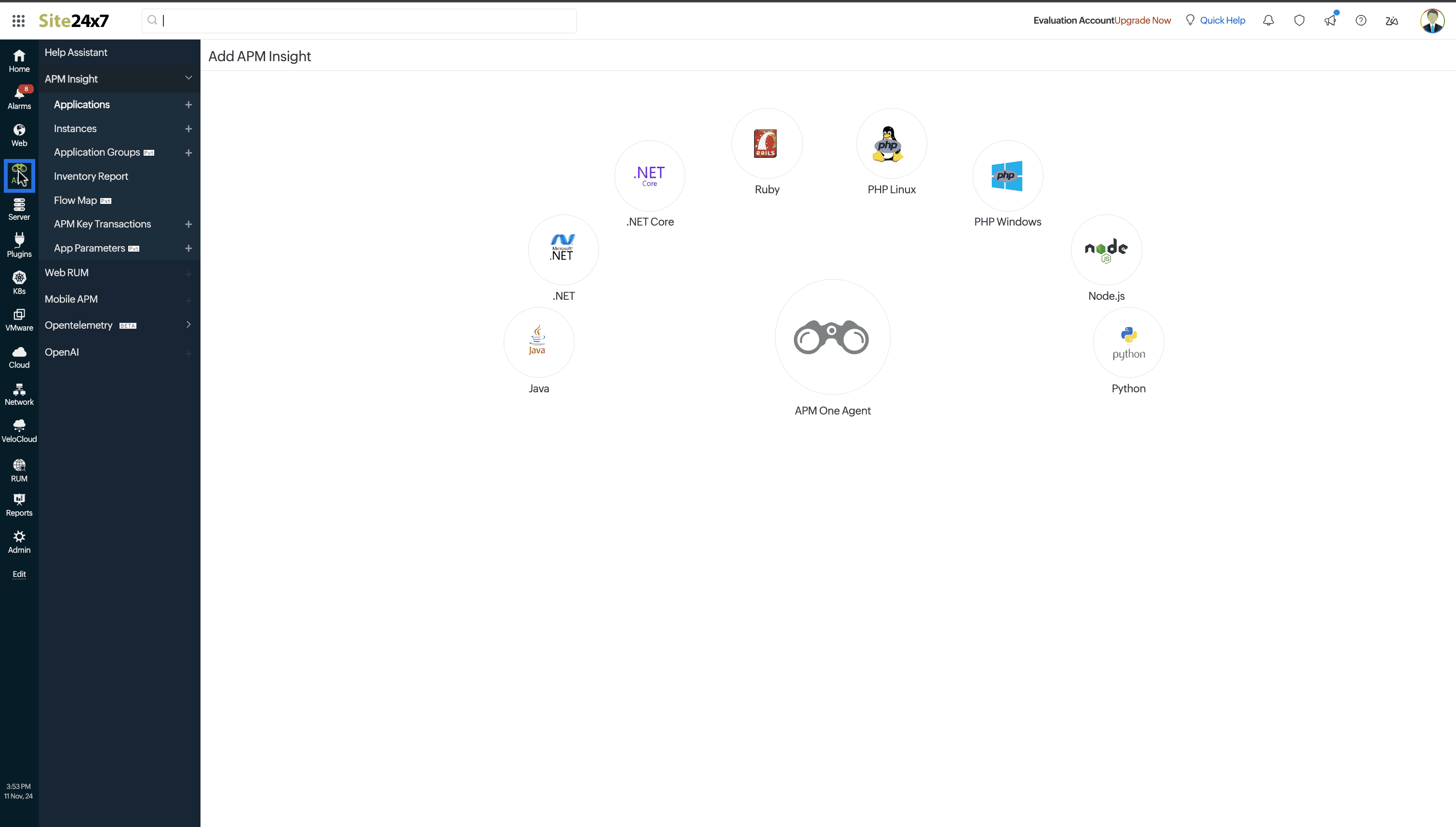

    APM
  3. Select OpenTelemetry.

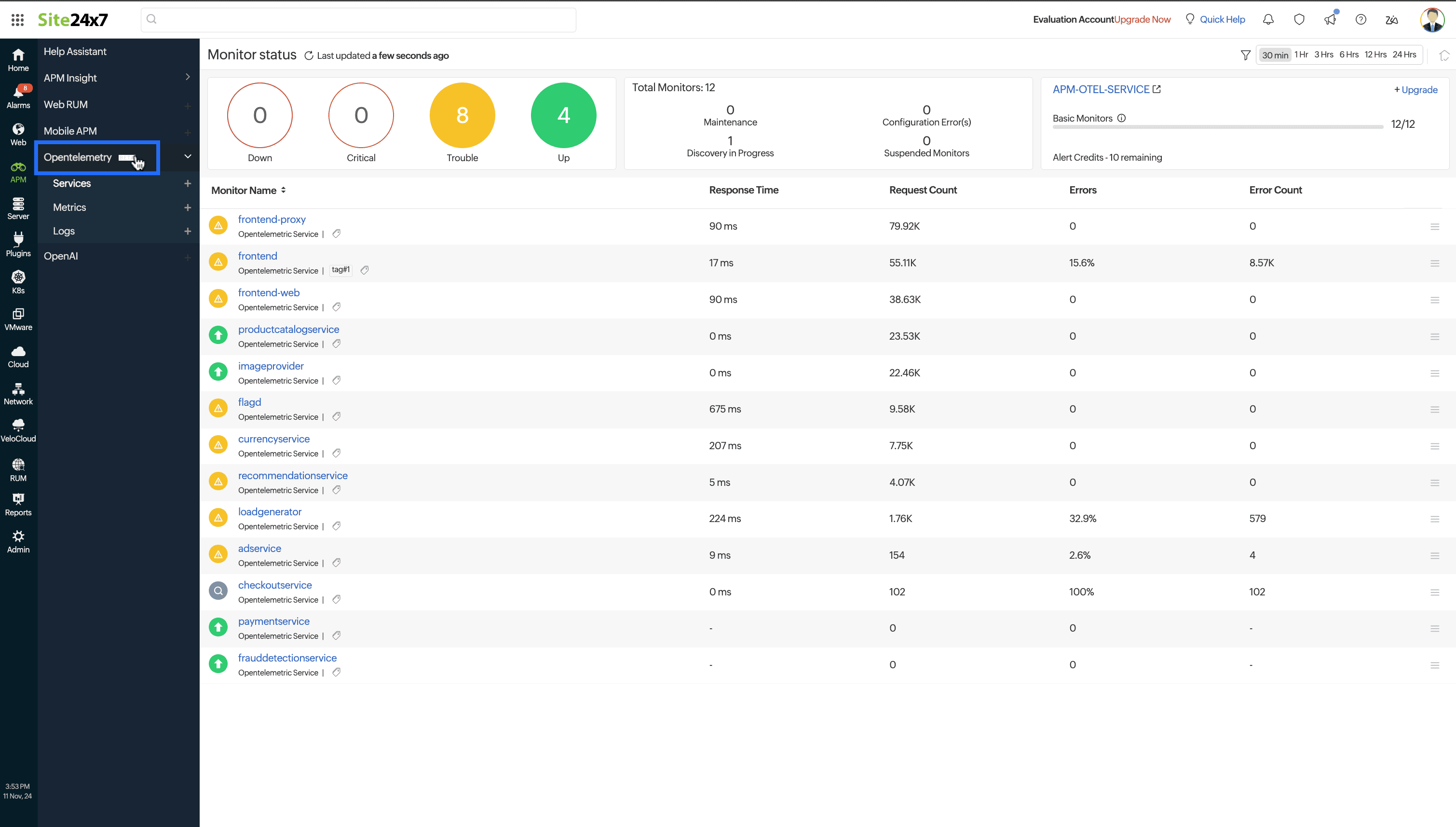

    select OpenTelemetry
  4. Click + next to Services, Metrics, or Logs.

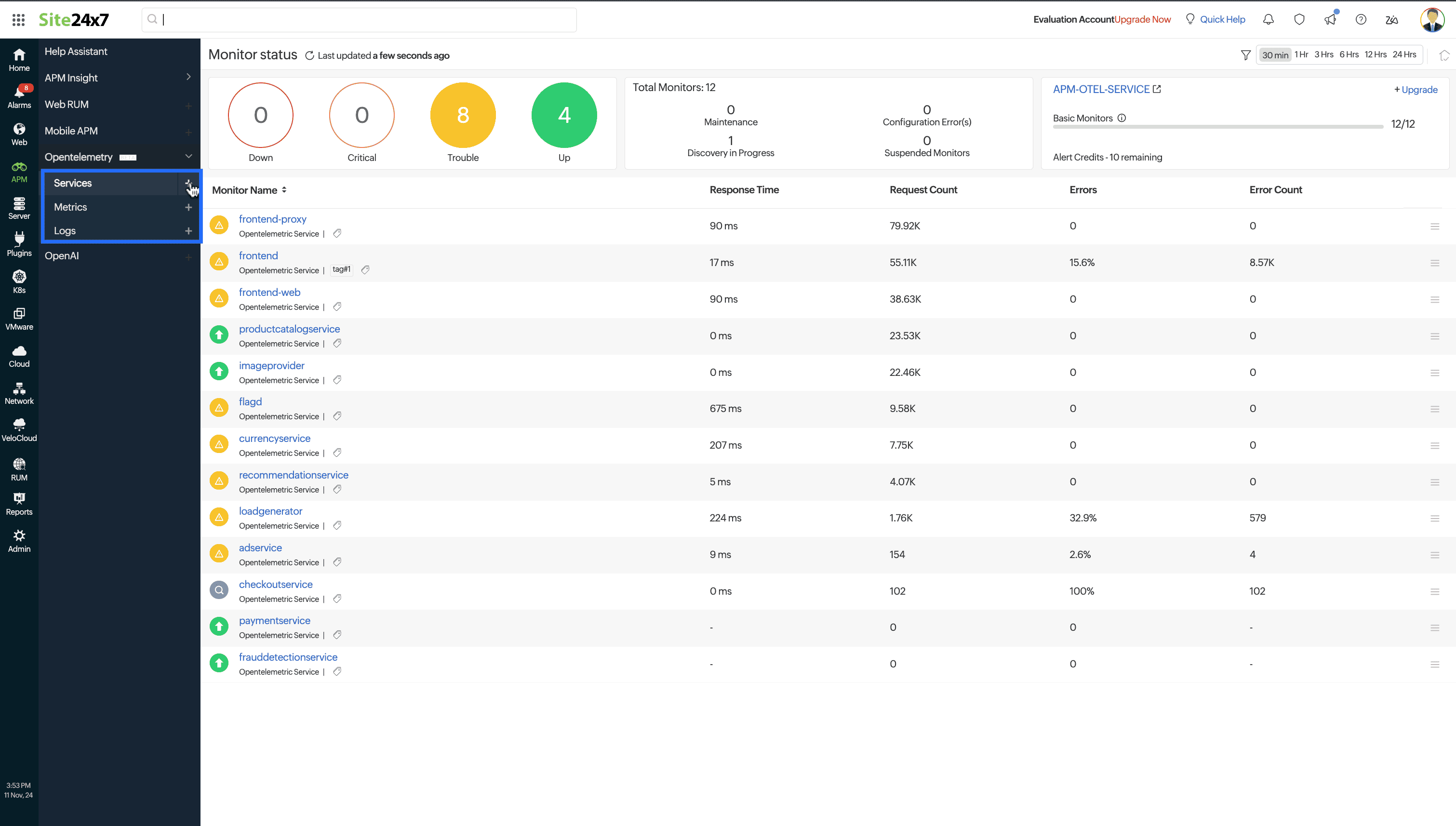

    Services, Metrics, and Logs
  5. Copy the OTLP Endpoint and API Key from this page and configure your OTLP Exporter to export data to this endpoint with the api-key header set.

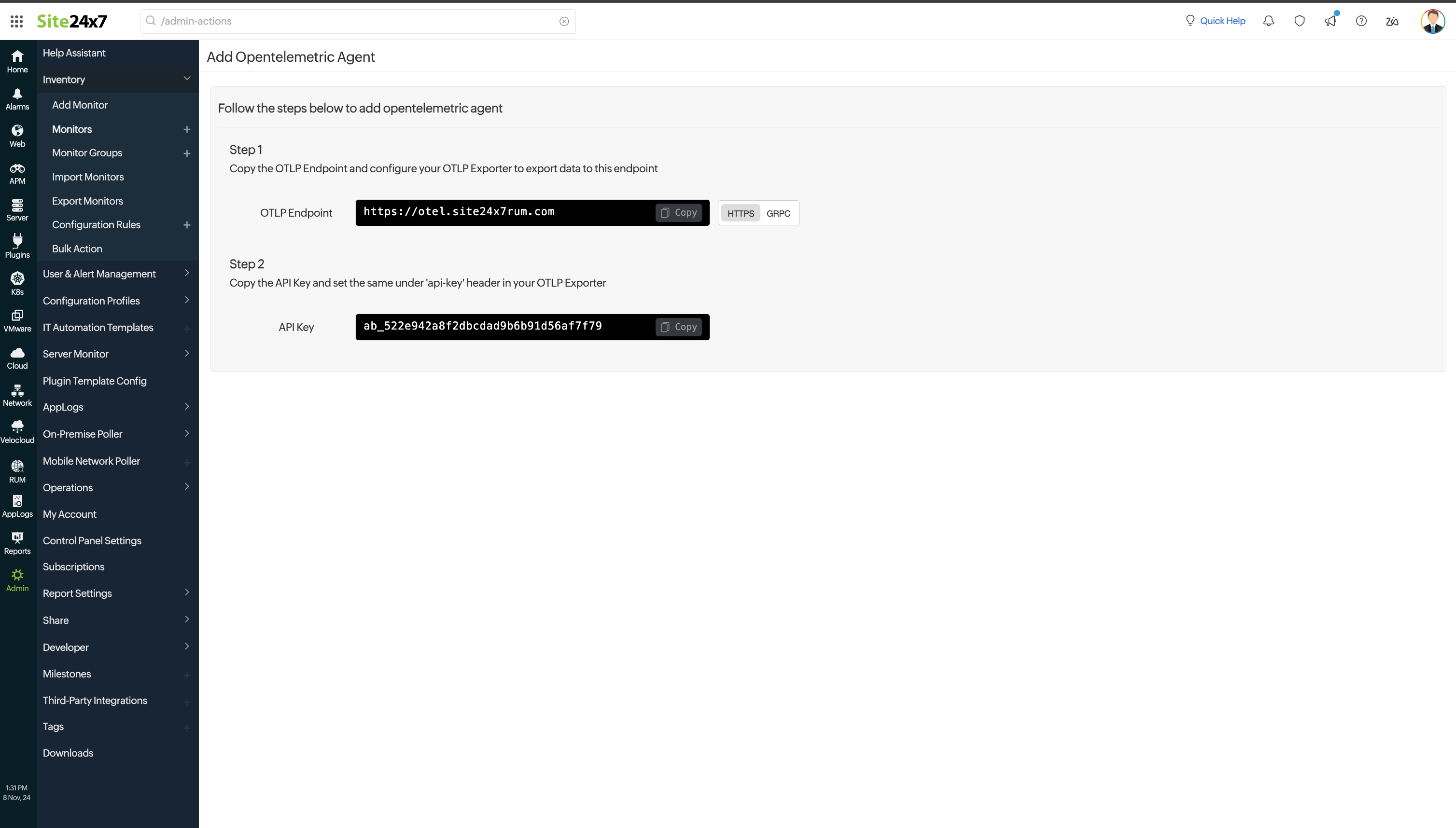

    Add OpenTelemetric agent
    Generally, the OTLP exporter endpoint and headers in OpenTelemetry SDKs can be set via the OTEL_EXPORTER_OTLP_ENDPOINT and OTEL_EXPORTER_OTLP_HEADERS environment variables, respectively.
    export OTEL_EXPORTER_OTLP_ENDPOINT="SITE24X7_OPENTELEMETRY_ENDPOINT"
    export OTEL_EXPORTER_OTLP_HEADERS="api-key=SITE24X7_LICENSE_KEY"
    If you are using an OpenTelemetry collector, follow the below syntax:
    exporters:
     otlphttp:
      endpoint: "SITE24X7_OPENTELEMETRY_ENDPOINT"
      headers:
       "api-key": "SITE24X7_LICENSE_KEY"
Note

Replace SITE24X7_OPENTELEMETRY_ENDPOINT and SITE24X7_LICENSE_KEY with your actual endpoint and license key.
