CloudWatch Agent Integration with Amazon EC2 Servers
The OpManager Nexus CloudWatch agent integration collects detailed performance metrics from Amazon EC2 instances through Amazon CloudWatch. You can integrate the CloudWatch agent with an EC2 monitor that already has the OpManager Nexus Server Monitoring agent integrated. This allows you to collect both server level and CloudWatch agent metrics from the same EC2 instance.
Prerequisites for monitoring using the CloudWatch agent

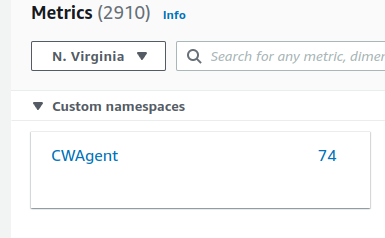

CloudWatch agent namespace
OpManager Nexus follows the default namespace CWAgent to collect metrics from Amazon CloudWatch. If you have a custom namespace, you must modify it to the default standards so OpManager Nexus can fetch data.

Adding dimensions to the CloudWatch agent configuration wizard
OpManager Nexus captures metrics using the following dimensions:
- ImageId
- InstanceId
- InstanceType

Enable these dimensions in order for OpManager Nexus to collect metrics from CloudWatch.
Policies and permissions
OpManager Nexus requires you to enable ReadOnly permissions for the following so the CloudWatch agent works seamlessly in your AWS environment:
CloudWatch agent policies
- CloudWatchAgentAdminPolicy
- CloudWatchAgentServerPolicy
EC2 permissions
- "ec2:DescribeInstances"
- "ec2:DescribeImages"
CloudWatch permissions
- "cloudwatch:GetMetricData"
- "cloudwatch:GetMetricStatistics"
- "cloudwatch:ListMetrics"
Enabling the CloudWatch agent in OpManager Nexus
- From the OpManager Nexus web client, go to Cloud > AWS > your AWS Account > Advanced Configurations.
- Enable EC2 CloudWatch Agent into EC2: Toggle to Yes.
NoteBy default, this option will be set to No for existing OpManager Nexus users and to Yes for new users.
Integration criteria
OpManager Nexus supports integrating both the Server Monitoring agent and the CloudWatch agent with the same EC2 instance.
- If the OpManager Nexus Server Monitoring agent is already integrated with an EC2 monitor, the CloudWatch agent monitor is automatically discovered and attached to the EC2 monitor during the next discovery.
- If the CloudWatch agent is already integrated with an EC2 instance, you can also integrate the OpManager Nexus Server Monitoring agent with the same EC2 instance.
- Both integrations operate independently and collect their respective metrics.
Existing CloudWatch agent integrations continue to work as before. No migration or additional configuration is required for existing integrations.
Viewing CloudWatch agent metrics
When both the OpManager Nexus Server Monitoring agent and CloudWatch agent are integrated with an EC2 instance, you can view the metrics collected by both agents from the EC2 monitor details page.
The following tabs are available:
- Server Agent Metrics: Displays the performance metrics collected by the OpManager Nexus Server Monitoring agent.
- CloudWatch Agent Metrics: Displays the metrics collected through the CloudWatch agent.
- Disk Metrics: Displays disk related metrics.
- Procstat/Plugins: Displays the applicable process and plugin metrics.
The CloudWatch Agent Metrics tab also includes a CloudWatch agent status widget that displays the current status of the attached CloudWatch agent monitor.
This allows you to view the metrics and monitor the status of both agents from the parent EC2 monitor.
Supported metrics
CloudWatch agent for Windows
| Metric | Description | Unit |
| Memory % Committed Bytes In Use | The percent of memory currently committed and in use. | Percentage |
| Logical Disk % Free Space | The percent of free memory remaining on the logical disk. | Percentage |
| Paging File % Usage | The percent of free memory remaining on the paging file. | Percentage |
| Processor % Idle Time | The unused free processor or CPU capacity. | Percentage |
| Processor % Interrupt Time | The time the processor spent receiving and servicing hardware interrupts during sample intervals. | Percentage |
| Processor % User Time | The percent of time the processor spent executing in user mode. | Percentage |
| Physical Disk % Disk Time | The percent of time the selected disk drive was busy servicing read or write requests. | Percentage |
| Physical Disk Write | Disk write throughput per second. | Bytes/sec |
| Physical Disk Read | Disk read throughput per second. | Bytes/sec |
| Physical Disk Writes/sec | Disk write operations per second (IOPS that are write operations). | Writes/sec |
| Physical Disk Reads/sec | Disk read operations per second (IOPS that are read operations). | Reads/sec |
| TCPv4 Connections Established | The total number of TCP v4 connections established. | Count |
| TCPv6 Connections Established | The total number of TCP v6 connections established. | Count |
| Number of processes in Available status | The number of processes in Available status. | Count |
| Number of processes in Down status | The number of processes in Down status. | Count |
| Number of processes in Trouble status | The number of processes in Trouble status. | Count |
| Number of processes in Critical status | The number of processes in Critical status. | Count |
| Number of processes in Suspended status | The number of processes in Suspended status. | Count |
| Number of processes in Maintenance | The number of processes in Maintenance status. | Count |
| LogicalDisk Free Megabytes | Free disk space, in megabytes. | Average |
| Processor % Processor Time | The percentage of time a processor core spends executing an active, non-idle thread. | Average |
CloudWatch agent for Linux or Unix
| Metric | Description | Unit |
| Memory Used | The percent of memory currently in use. | Percentage |
| Swap Space Used | The percent of swap space currently in use. | Percentage |
| Free Disk Inodes | The number of available index nodes on the disk. | Count |
| Used Disk | The percent of total disk space in use. | Percentage |
| Disk I/O Time | The amount of time the disk has had I/O requests queued. | Milliseconds |
| Disk I/O Write in Bytes | The number of bytes written to the disk. | Bytes |
| Disk I/O Read in Bytes | The number of bytes read from the disk. | Bytes |
| Disk I/O Write Count | The number of disk write operations. | Count |
| Disk I/O Read Count | The number of disk read operations. | Count |
| CPU Usage Idle | The percent of time the CPU is idle. | Percentage |
| CPU Usage I/O Wait | The percent of time the CPU is waiting for I/O operations to complete. | Percentage |
| CPU Usage User | The percent of time the CPU is in user mode. | Percentage |
| CPU Usage System | The percent of time the CPU is in system mode. | Percentage |
| Netstat TCP Established | The number of TCP connections established. | Count |
| Netstat TCP Time Wait | The number of TCP connections currently waiting to ensure that the client received the acknowledgement of its connection termination request. | Count |
| Number of processes in Available status | The number of processes in Available status. | Count |
| Number of processes in Down status | The number of processes in Down status. | Count |
| Number of processes in Trouble status | The number of processes in Trouble status. | Count |
| Number of processes in Critical status | The number of processes in Critical status. | Count |
| Number of processes in Suspended status | The number of processes in Suspended status. | Count |
| Number of processes in Maintenance | The number of processes in Maintenance status. | Count |
| Memory Active | Memory recently used and not usually reclaimed unless the system runs low. | Average |
| Memory Available | Estimated memory available to start new applications without swapping. | Average |
| Memory Available Percent | Available memory as a percentage of total memory. | Average |
| Memory Buffered | Memory used by kernel buffers for raw disk block I/O. | Average |
| Memory Cached | Memory used by the page cache (cached file/disk data). | Average |
| Memory Inactive | Memory not recently used that can be reclaimed when needed. | Average |
| Memory Shared | Memory shared between multiple processes. | Average |
NVIDIA GPU metrics
These metrics are supported for the CloudWatch agent on Linux instances with NVIDIA GPUs.
| Metrics name | Description | Statistic | Unit |
| Nvidia GPU Utilization | Percentage of time the GPU was busy executing kernels (compute utilization). | Average | Percent |
| Nvidia GPU Temperature | GPU core temperature (°C). | Average | Celsius |
| Nvidia GPU Power Draw | Power currently drawn by the GPU (watts). | Average | Watts |
| Nvidia GPU Memory Utilization | Percentage of time the GPU memory controller was reading/writing (memory bandwidth utilization). | Average | Percent |
| Nvidia GPU Fan Speed | GPU fan speed as a percentage of maximum. | Average | Percent |
| Nvidia GPU Total Memory | Total GPU frame buffer memory. | Average | Bytes |
| Nvidia GPU Memory Used | GPU frame buffer memory currently in use. | Average | Bytes |
| Nvidia GPU Memory Free | GPU frame buffer memory available. | Average | Bytes |
| Nvidia GPU PCIe Link Generation Current | Current PCIe link generation in use by the GPU. | Sum | Count |
| Nvidia GPU PCIe Link Width Current | Current PCIe link width (number of lanes) in use. | Sum | Count |
| Nvidia GPU Encoder Session Count | Number of active hardware video encoder sessions. | Sum | Count |
| Nvidia GPU Encoder Average FPS | Average frames per second across encoder sessions. | Average | Frames per second |
| Nvidia GPU Encoder Average Latency | Average latency of the hardware video encoder. | Average | microseconds |
| Nvidia GPU Clocks Current Graphics | Current graphics (core) clock frequency. | Average | MHz |
| Nvidia GPU Clocks Current SM | Current streaming multiprocessor (SM) clock frequency. | Average | MHz |
| Nvidia GPU Clocks Current Memory | Current memory clock frequency. | Average | MHz |
| Nvidia GPU Clocks Current Video | Current video encoder/decoder clock frequency. | Average | MHz |
Threshold configuration
To configure thresholds for your integrated monitor:
- Navigate to Admin > Configuration Profiles > Threshold and Availability.
- Click Add Threshold Profile.
- Select CloudWatch Agent from the Monitor Type drop-down menu.
- Provide an appropriate name in the Display Name field. The supported metrics are displayed in the Threshold Configuration section. You can set threshold values for all the metrics listed above.
- After you set the threshold values for the applicable metrics, click Save.
You can manage all the alerts to ensure that the notifications are sent through the parent monitor with the status propagation feature.
Notify for Procstat status changes
The Notify for Procstat Changes option is set to No by default. Toggle this option to Yes, to get notified when the Procstat monitor is in Available, Down, Trouble, Critical, Suspended, or Maintenance status.
CloudWatch agent thresholds from the EC2 monitor
You can configure thresholds for the attached CloudWatch agent monitor directly from the EC2 monitor's edit form using the CloudWatch Agent Threshold Configuration option.
The EC2 threshold configuration form also includes a notification toggle for the attached CloudWatch agent. Enable this option to receive notifications for the CloudWatch agent based on the configured threshold settings.
CloudWatch agent polling frequency
The CloudWatch agent monitor has its own polling interval, independent of the parent EC2 monitor's polling interval. Changes to the EC2 monitor's polling interval do not affect the polling frequency of the attached CloudWatch agent monitor.
CloudWatch agent lifecycle management
The lifecycle of the attached CloudWatch agent monitor is linked to its parent EC2 monitor. When you perform a lifecycle action on the EC2 monitor, the corresponding action is automatically applied to the attached CloudWatch agent monitor.
| EC2 monitor action | CloudWatch agent monitor action |
| Suspend | Suspended |
| Activate | Activated |
| Delete | Deleted |
CloudWatch agent in Log Report
The Log Report screen includes an EC2 CloudWatch Agent toggle to identify the EC2 CloudWatch agent as a log source in the report configuration.
Licensing
The CloudWatch agent integration with EC2 servers can be used for free in OpManager Nexus.
-
