Wireless network solutions explained

Wireless network technologies explained

Access points (APs): The radios that connect client devices to the network. Modern APs broadcast on the 2.4 GHz, 5 GHz, and 6 GHz bands. Most connect to a wired switch, which links them to the rest of the network.

Wireless LAN controllers (WLCs): Devices that manage many APs at once. Admins use them to push settings, apply security policies, set QoS rules, and tune radios across hundreds of APs. Learn more about wireless LAN controller monitoring.

Cloud management platforms: An alternative to on-site controllers. A cloud service handles AP setup and management, while the APs handle traffic on site.

Service set identifiers (SSID): The human-readable name for a segmented wireless network. This is what clients connect to from their devices.

Basic service set identifier (BSSID): The MAC address identifier for a specific SSID on a radio. An AP broadcasting three SSIDs advertises three BSSIDs.

Extended service set (ESS): SSIDs spanning multiple access points. It allows devices to roam smoothly while being connected to the same network.

Client devices: Laptops, phones, tablets, scanners, cameras, and IoT sensors that connect to the APs. Each client must authenticate before it joins the network. Unknown or unapproved devices are called rogue devices.

Network size

Network size plays a major role in determining the kind of wireless networking solution deployed in it. Small and medium-sized networks can have up to a thousand devices, while enterprise networks can have thousands of devices. APs deployed for each case are different.

• Autonomous access points: Each AP works on its own and is set up individually. This suits small offices with only a few APs. But it gets hard to manage as the network grows.
• Controller-based access points: Lightweight APs are managed in bulk by a WLC. Settings, security policies, and radio tuning are applied from one place. This is the classic choice for large campuses.
• Cloud-managed access points: A cloud service manages the APs, as with Cisco Meraki. There's no on-site controller to maintain, which makes this popular for spread-out networks.

Key metrics to monitor: AP uptime, WLC hardware health, and the number of APs and clients each controller handles.

Coverage and roaming

APs must broadcast signals of uniform strength throughout the intended coverage area. Devices moving within the coverage area should have uninterrupted connections, especially for services like VoIP and high-quality video streaming. You should prioritize minimal interference and the elimination of dead zones.

• Wired backhaul: Each AP connects to the network over Ethernet. This is the most reliable option and the standard for most business networks.
• Mesh networks: Some APs connect to each other wirelessly instead of over cables. This helps where running cables is hard or costly. But every wireless hop uses airtime, so speeds drop with each hop. Mesh APs also need extra processing power.
• Point-to-point bridges: Dedicated wireless links that connect separate buildings or outdoor areas over long distances.
• Fast roaming: Standards like 802.11k, 802.11v, and 802.11r help clients find and move to the best AP quickly. They matter most for voice, video, and mobile devices.

Key metrics to monitor: Signal strength and SNR across the coverage area, and client count per AP. For signal targets, see our Wi-Fi analyzer guide.

Interference and noise

Interference happens when signals on the same or nearby frequencies collide. It can come from nearby APs on the same channel. It can also come from non-Wi-Fi devices like microwaves, cordless phones, and Bluetooth gear.

The 2.4 GHz band is the most crowded. It has only three channels that don't overlap, and it shares space with many everyday devices. The 5 GHz band has more channels, but a shorter range. The 6 GHz band offers the most clean spectrum, but only Wi-Fi 6E and Wi-Fi 7 devices can use it.

• Radio resource management (RRM): Most business Wi-Fi platforms tune channels and transmit power on their own. When two APs interfere, RRM can move one to a different channel or lower its power.
• Band steering: Pushes capable clients from 2.4 GHz to the less crowded 5 GHz or 6 GHz bands.
• Load balancing: Spreads clients across nearby APs, so no single AP gets overloaded.
• Narrower channels: In crowded spaces, using 20 MHz or 40 MHz channels on 5 GHz gives you more channels to work with and less overlap.

Key metrics to monitor: SNR, channel noise, and how clients are split across bands.

Device density and capacity

Meeting rooms, lecture halls, and warehouses can pack hundreds of devices into one space. Even a strong signal can't help if too many clients compete for the same airtime.

• Wi-Fi 6 and Wi-Fi 6E: Features like OFDMA and uplink MU-MIMO let an AP serve many clients at the same time, instead of one after another.
• Wi-Fi 7: Adds wider 320 MHz channels in the 6 GHz band. It also adds multi-link operation (MLO), which lets a device use more than one band at once.
• More APs at lower power: Smaller coverage cells mean fewer clients per AP and more total capacity.
• Quality of service (QoS): Gives voice and video traffic priority over less urgent traffic, like downloads and backups.

Key metrics to monitor: Active clients per AP, traffic volume, client transmit rates, and AP CPU utilization.

Device diversity and segmentation

A typical organization has staff laptops, personal phones, printers, cameras, IoT sensors, and guest devices on the same wireless network. They need different levels of access and priority. For example, guest devices should never reach finance servers.

• Virtual LANs (VLANs): Split one physical network into separate logical networks. Each SSID or user role can map to its own VLAN, so traffic stays apart.
• Separate SSIDs: Dedicated networks for staff, guests, and IoT devices make it easier to apply the right rules to each group.
• Network access control (NAC): Checks who and what is connecting, and places each device in the right segment.

Key metrics to monitor: Client counts per SSID, traffic per VLAN, and rogue SSID checks.

Privacy and security

Anyone within range of an AP can try to connect. That makes authentication and encryption essential. Older protocols like WEP (Wired Equivalent Privacy) and the original WPA (Wi-Fi Protected Access) have known flaws. WPA2 is more secure, but WPA3 is now the recommended standard.

• WPA3-Enterprise: Uses 802.1X authentication, with separate credentials for each user. Best for staff networks.
• WPA3-Personal: Uses a shared password, but resists password-guessing attacks far better than WPA2.
• Wi-Fi Enhanced Open: Encrypts traffic on open guest networks, without needing a password.

The 6 GHz band requires WPA3 or Enhanced Open. WPA2 isn't allowed there. So moving to Wi-Fi 6E or Wi-Fi 7 also means moving to WPA3.

• Rogue AP detection: Encryption doesn't stop someone from plugging in an unapproved AP. Regular scans for rogue SSIDs close that gap.

Key metrics to monitor: Rogue SSIDs, rogue devices, and sudden spikes in client counts.

Multi-site and branch networks

Retail chains, banks, schools, and clinics often run Wi-Fi across dozens or hundreds of sites. Most of these sites have no IT staff on hand.

• Central or cloud management: Manage every site's APs from one place, with standard templates for settings and security.
• Remote visibility: Watch every site from a central console, so problems are spotted without a site visit.
• Managed service providers (MSPs): Many organizations hand wireless management to an MSP. MSPs need tools that keep each client's network separate.

Key metrics to monitor: AP availability by site, WLC health, and site-level alerts.

Corporate offices and campuses

Offices need strong coverage for video calls, smooth roaming between meeting rooms, and separate networks for staff and guests. Controller-based or cloud-managed APs, WPA3-Enterprise, and QoS for voice and video are common choices.

Key metrics to monitor: SNR in meeting rooms, client load at peak hours, and AP availability.

Healthcare

Hospitals rely on Wi-Fi for clinical devices, voice badges, and patient records. Downtime can affect patient care. Smooth roaming, strict separation of medical devices, and strong encryption are essential.

Key metrics to monitor: AP availability, signal quality in patient care areas, and rogue devices.

Retail and multi-site businesses

Stores use Wi-Fi for point-of-sale systems, handheld scanners, and guest access. Most locations have no IT staff on site. Cloud-managed APs and central monitoring keep every store consistent.

Key metrics to monitor: Availability by store, guest network load, and rogue SSIDs.

Education

Schools and universities face extreme density. A single lecture hall can hold hundreds of devices, and usage spikes between classes. Wi-Fi 6 or newer APs, careful channel planning, and band steering help handle the load.

Key metrics to monitor: Active clients per AP, how clients are split across bands, and traffic peaks.

Warehouses, manufacturing, and logistics

Metal racks, machinery, and high ceilings make coverage hard. Handheld scanners and vehicles need constant roaming, and IoT sensors need steady connections. Wired backhaul, directional antennas, and fast roaming are common fixes.

Key metrics to monitor: Signal strength along aisles, AP uptime, and noise levels near machinery.

Hospitality and public venues

Hotels, stadiums, and airports serve large crowds who expect fast, easy Wi-Fi. Enhanced Open or captive portals for guests, high-density AP designs, and strict separation from back-office systems are standard.

Key metrics to monitor: Guest client counts, traffic per SSID, and AP availability.

Scale: Monitor controllers and access points from one console

OpManager's multi-vendor WLC monitoring shows the APs, SSIDs, clients, and rogue devices tied to each controller. You can turn on advanced monitoring for individual APs to track them in more depth. OpManager supports cloud-managed networks like Cisco Meraki. Moreover, OpManager can effortlessly monitor up to 50,000 devices.

Coverage and interference: Track signal quality

OpManager monitors SNR for client-AP connections and on the WLC, along with channel noise. Set multi-level thresholds that warn you as noise rises. That way, you can fix interference before it slows users down. To learn how to read these metrics together, see our Wi-Fi analyzer page.

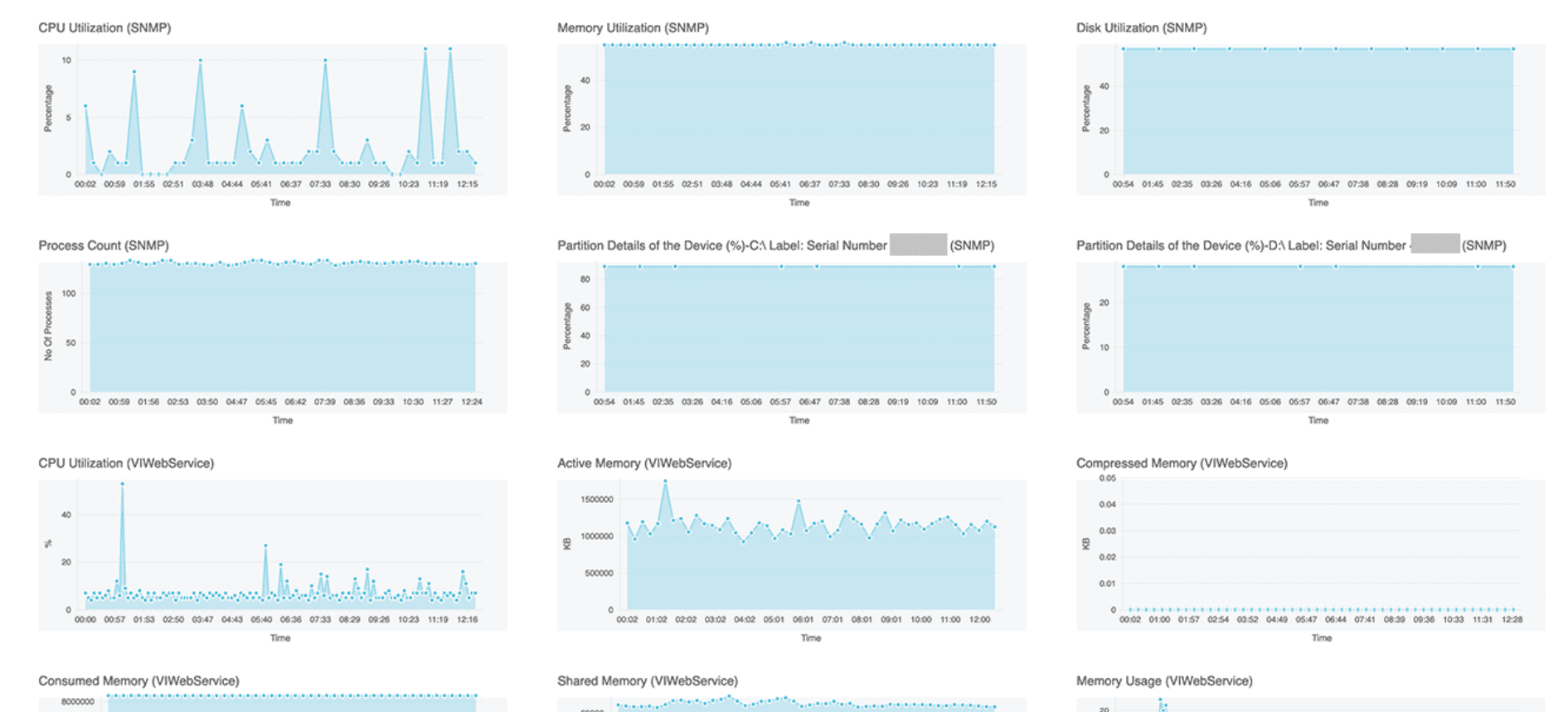

Capacity: Watch device performance and traffic

APs handle data transfer, encryption, and other tasks with limited processing power. Track CPU utilization, memory, and disk use to see how hard each AP is working. This matters most when mesh mode or built-in routing adds extra load.

You can also track total bytes sent and received by clients, APs, and WLANs, along with client transmit rates. Together, these show how close your network is to its capacity. Learn more about network performance monitoring.

Security: Spot rogue devices

The WLC device snapshot lists rogue devices and rogue SSIDs near your network. You can discover them in OpManager and monitor them individually, so unapproved networks don't go unnoticed.

Availability: Get notified when devices go down

OpManager tracks the availability of every AP and controller over time, and turns it into reports. When a device goes down, it alerts you right away by email, SMS, Slack, webhooks, or push notifications. For more on always-on tracking and alerts, visit our Wi-Fi monitoring tool page.

Faster fixes: Find root causes and automate the first response

OpManager's adaptive thresholds adjust to normal network activity. This cuts down on alert floods and false alarms.Root cause analysis profiles connect data across related devices to find what caused an outage. And workflows automate first-level troubleshooting tasks, which saves your team time.

Multi-site and MSP networks

OpManager monitors wireless networks across all your sites from one console. MSPs can use OpManager MSP to monitor many client networks while keeping each one separate.

For a complete look at OpManager's wireless features, visit our wireless network monitoring page. To see how OpManager compares with other options, read our list of the best wireless monitoring tools.
