Attacks License Management

    The Attacks License Management option lets you enable or disable the Interfaces exporting NetFlow data to NetFlow Analyzer, depending on the license that you have purchased.

    The status box at the top of the page indicates the type of license currently applied and the total number of Interfaces currently enabled.

    Look up Licensing to know more about upgrading your license.

    The Router List shows all the routers and Interfaces from which NetFlow exports are received, and whether they are enabled or not.

    Enabling a router/Interface

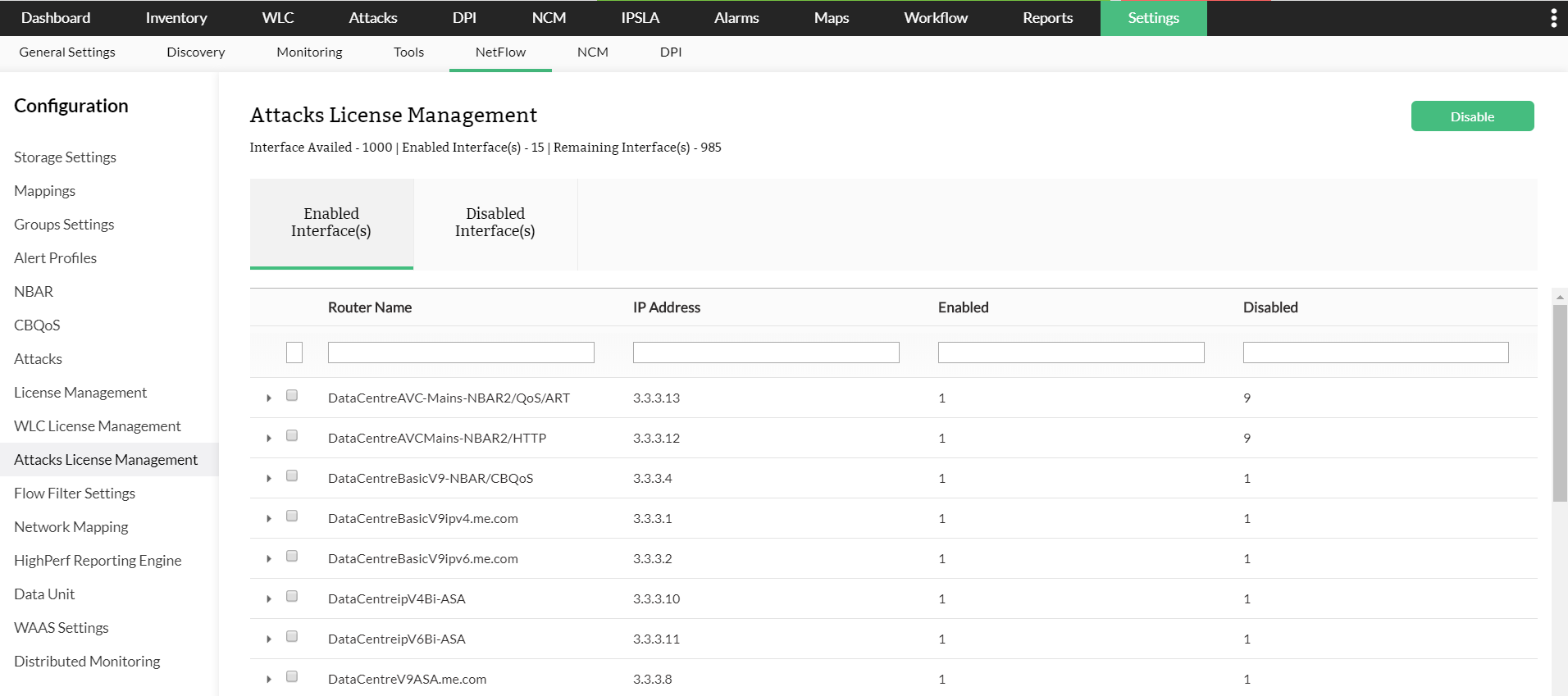

    Enabling Router/Interface

    To select the router and all its Interfaes check the checkbox next to the router name. To select a specific Interface, check the checkbox next to the Interface name.

    Once you have selected the required Interface, click the Enable button to Enable these Interfaces.

    The maximum number of Interfaces that can be enabled, depends on the current license applied.

    Disabling a router/Interface

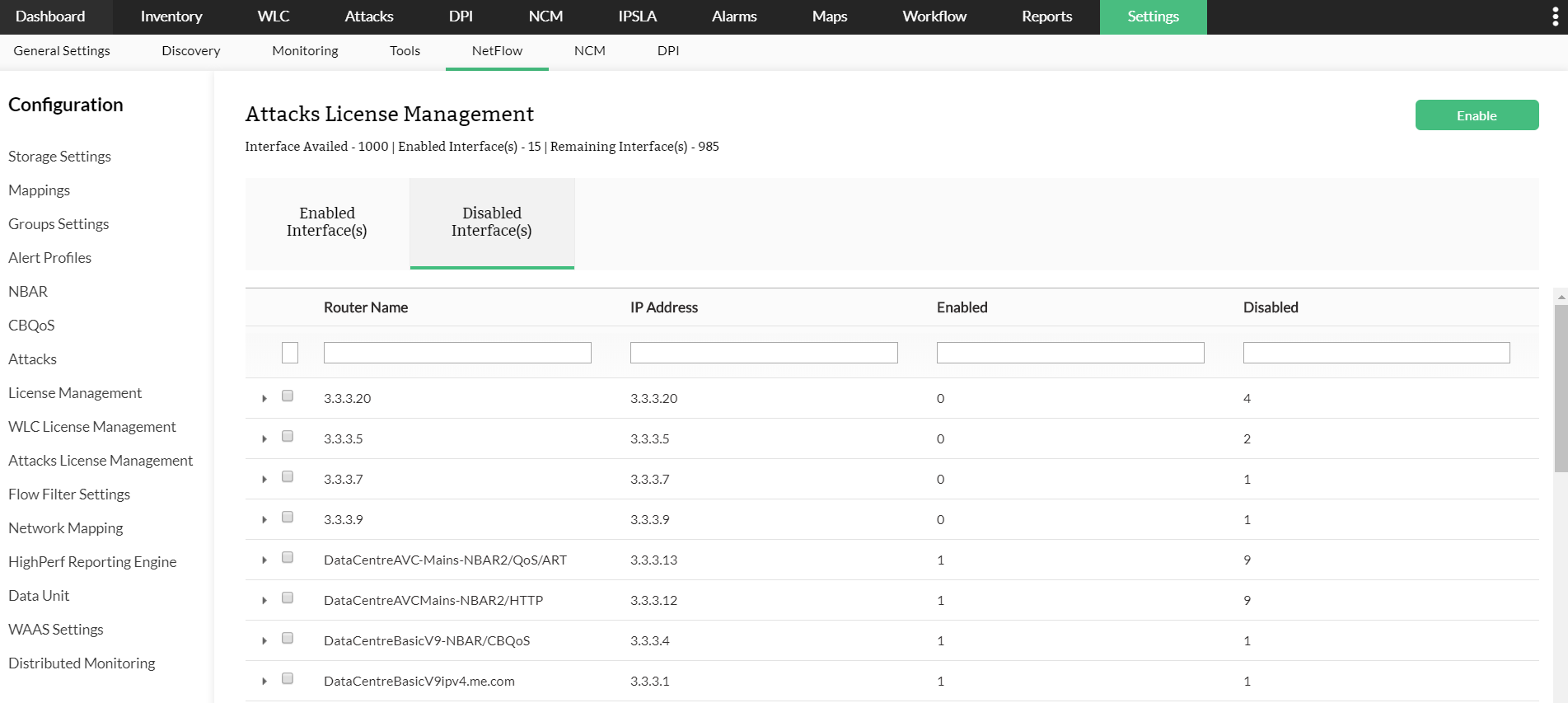

    Disabling Router/Interface

    To select the router and all its Interfaces check the checkbox next to the router name. To select a specific Interface, check the checkbox next to the Interface name.

    Click the Disable button to Disable these Interfaces.
