How to create an IP group based on IP address/IP network/IP range?

    Faster troubleshooting with advanced Forensics

    1. Navigate to Settings > NetFlow >Group Settings>IP groups
    2. Click on Add

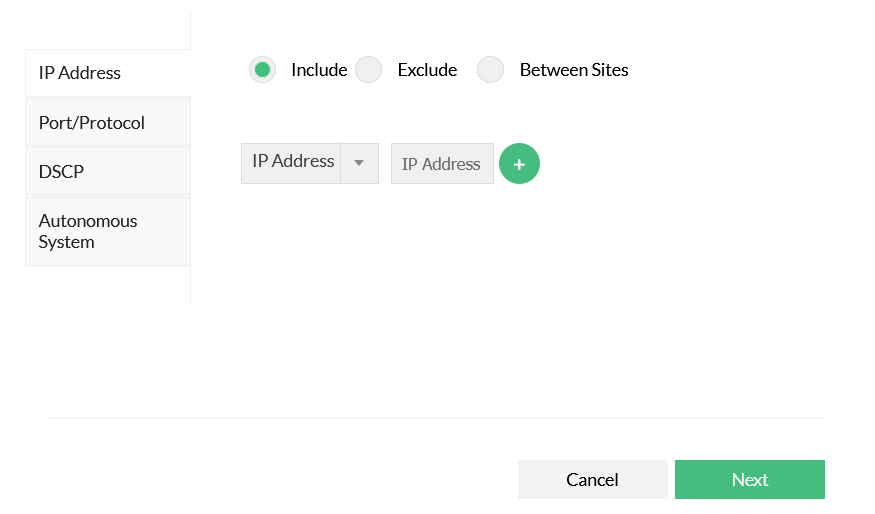

    3. To add a criteria, select IP type as IP address / IP network / IP range with the options "Include" or "Exclude" or "Between sites" and click "+" button and click on Next
    4. To associate Interface, select all interfaces applicable and click on Next.
    5. In Group Information, Enter the group name, description and IP group speed
    6. Click Save

    How to create an IP group based on IP, Port & Protocol combination?

    Faster troubleshooting with advanced Forensics

    1. Navigate to Settings>NetFlow >Group Settings>IP groups
    2. Click Add
    3. To add a criteria, select the "Port/Protocol" option
      • Select the protocol from the list and enter the port number for that IP group
      • click "+" button to add the criteria and Click Next
      • To associate Interface, select all interfaces applicable and click on Next button.
    4. In Group Information, Enter the group name, description and IP group speed.
    5. Click Save

    How to create an IP group to monitor bandwidth between two sites?

    Monitor bandwidth between-sites

    1. Navigate to Settings>NetFlow >Group Settings>IP groups
    2. Click Add
    3. You can add multiple "From" & "To" IP Addresses for between sites.
      • Select IP address/IP network/IP range
      • Provide IP details for both sites
      • click "+" button to add the criteria and Click Next
      • To associate Interface, select all interfaces applicable and click on Next button.
      Note: You can add multiple "From" & "To" IP Addresses for between sites.
    4. In Group Information, Enter the group name, description and IP group speed.
    5. Click Save

    How to delete an IP group?

    Click Delete icon next to the IP group name under Settings > NetFlow > Group Settings > IP group.

    How to edit an IP group?

    Click on an existing IP group name, modify the criteria / interfaces / speed and click save.

    How to bulk load IP group?

    ipgroupbulkuploadi

    ipgroupbulkload

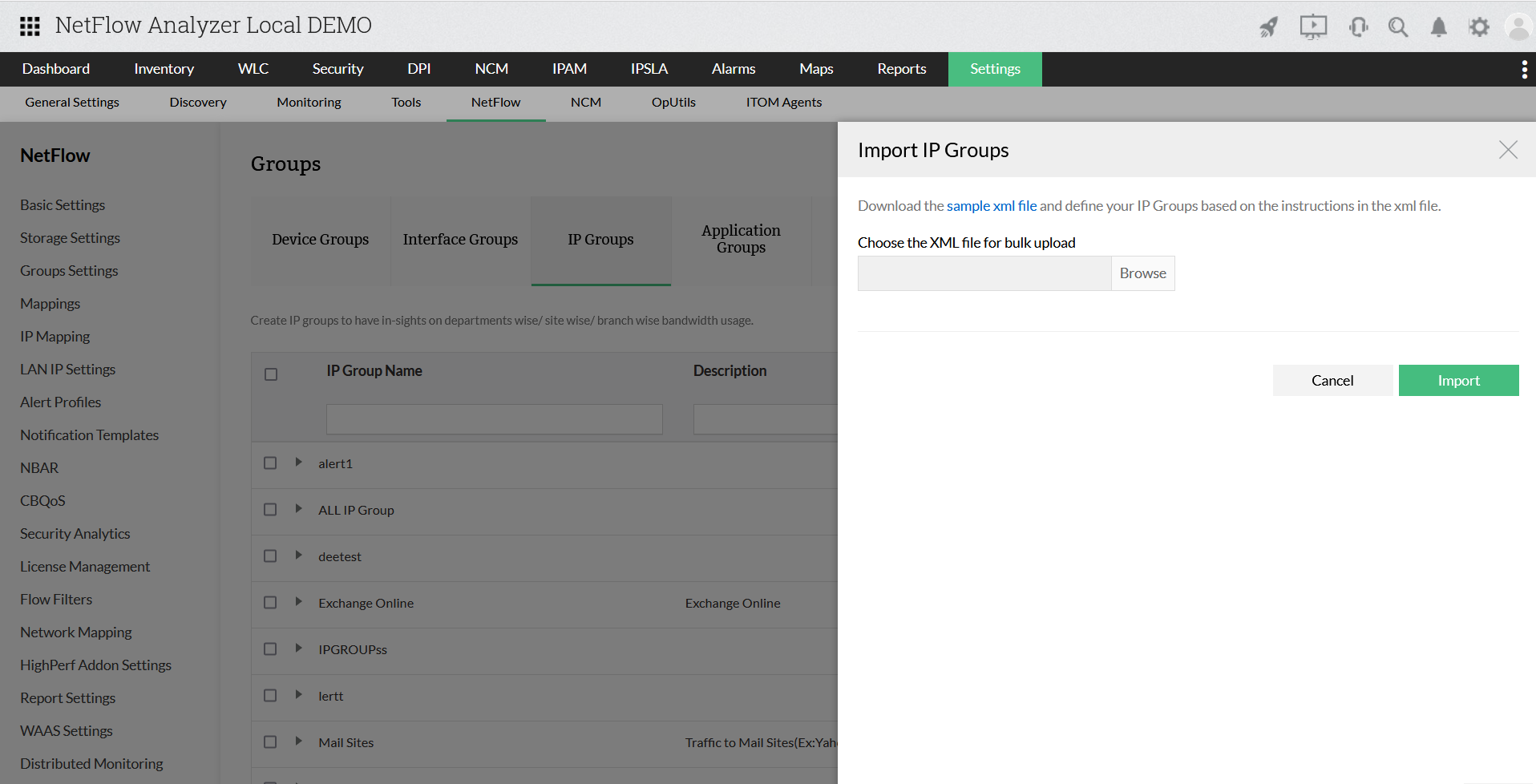

    1. To upload ip groups in bulk, click on XML Uploadicon.
    2. Download the sample xml file and define your IP Groups based on the instructions.
    3. You can edit the code as required and click Browse.
    4. Upload the file and Import.
