Advanced Threat Analytics

Modern security teams cannot rely only on the logs data to find out potential attacks. We need more information than just what error was triggered, and internal logs will not provide that data for us. The Advanced Threat Analytics (ATA) feature in Log360 Cloud pulls data about malicious IPs, and domains that have an assigned reputation score and uses that to alert the administrators of any suspicious IP tries to connect to your network.

To enable Advanced Threat Analytics, follow the steps below:

1. Login to the Log360 Cloud application with Admin permissions.
2. Go to the Settings → Admin → Management → Threat Management → Advanced Threat Analytics.
3. Log360 Cloud provides you with two options to choose from,

Default Threat Server

When Enabled, Log360 Cloud correlates the information available in AlienVault OTX to trigger alerts if there's a match. This option only fetches data on the blacklisted IPs.

Advanced Threat Analytics

Overview

This option allows Log360 Cloud to provide more context about the potential attack by correlating crucial data such as the first and last time it was detected, reputation score, etc from the threat feed.

1. Log360 Cloud supports the following vendors for the Advanced Threat Analytics data:
   • Log360 Cloud Threat Analytics

     Default integration from Log360 Cloud suite. This can be accesed once the add-on is purchased.

   • VirusTotal

     Third-party threat feed integration. This follows the Bring Your Own Key(BYOK) model. If you have bought VirusTotal access separately, you can use your API key and get the threat analytics information in Log360 Cloud.

2. Access
   • Investigation: The Threat Analytics information can be accessed through the External Threat report and the Incident Workbench for investigations.
   • Detection: The Default Threat alert criteria detects interaction with external threat sources. Once the Advanced Threat Analytics add-on is applied, the alerts will be accurately fine tuned to reduces false positives.

External Threat report

The External Threat report contains the information on the source of the threat, severity, reputation score, and more.

• View reports of Top Attacked Hosts and Threats by Category for the selected period.



• Click on IPs in the Threat Source column and select Go To Incident Workbench to get contextual risk data from the integrated threat feeds

Setting Alerts for External Threats

1. From the Alerts tab, go to Manage Profiles -> Add Alert Profile.
2. When required to select an alert, choose Threat Analytics as the Alert Log Type and select the External Threat radio button and click Save.
3. Log360 Cloud will send an alert whenever a malicious IP tries to connect with your network.

Log360 Cloud Threat Analytics

Analysis

The Log360 Cloud Threat Analytics is available in the Incident Workbech. Learn how to invoke the Incident Workbench from different dashboards of Log360 Cloud.

Select any IP or Domain to analyze in the Workbench. You can access the following data:

• Info

  This section contains the Reputation Score of the Threat Source on a scale of 0-100.

Note: The risk factor is inversely proprtional to the Reputation Score.

You can also view the Reputation Score Trend chart, Status of the Threat Source( whether it's actively part of the threat list), Category, Number of occurences on threat list, and when the source has been released from the threat list.





• Geo Info

  The Geo Info contains location details of the Threat Source such as city, state, region and the Whois information of the domain.



• Related Indicators

  This section contains the risk profile of the related indicators of IPs and Domains.

  Here are the related indicators:

IP:

• ASN
• Hosted files
• Hosted apps

Domain:

• Virtually hosted
• Subdomains
• Hosted files
• Hosted apps
• Hosted IPs
• Common registrant

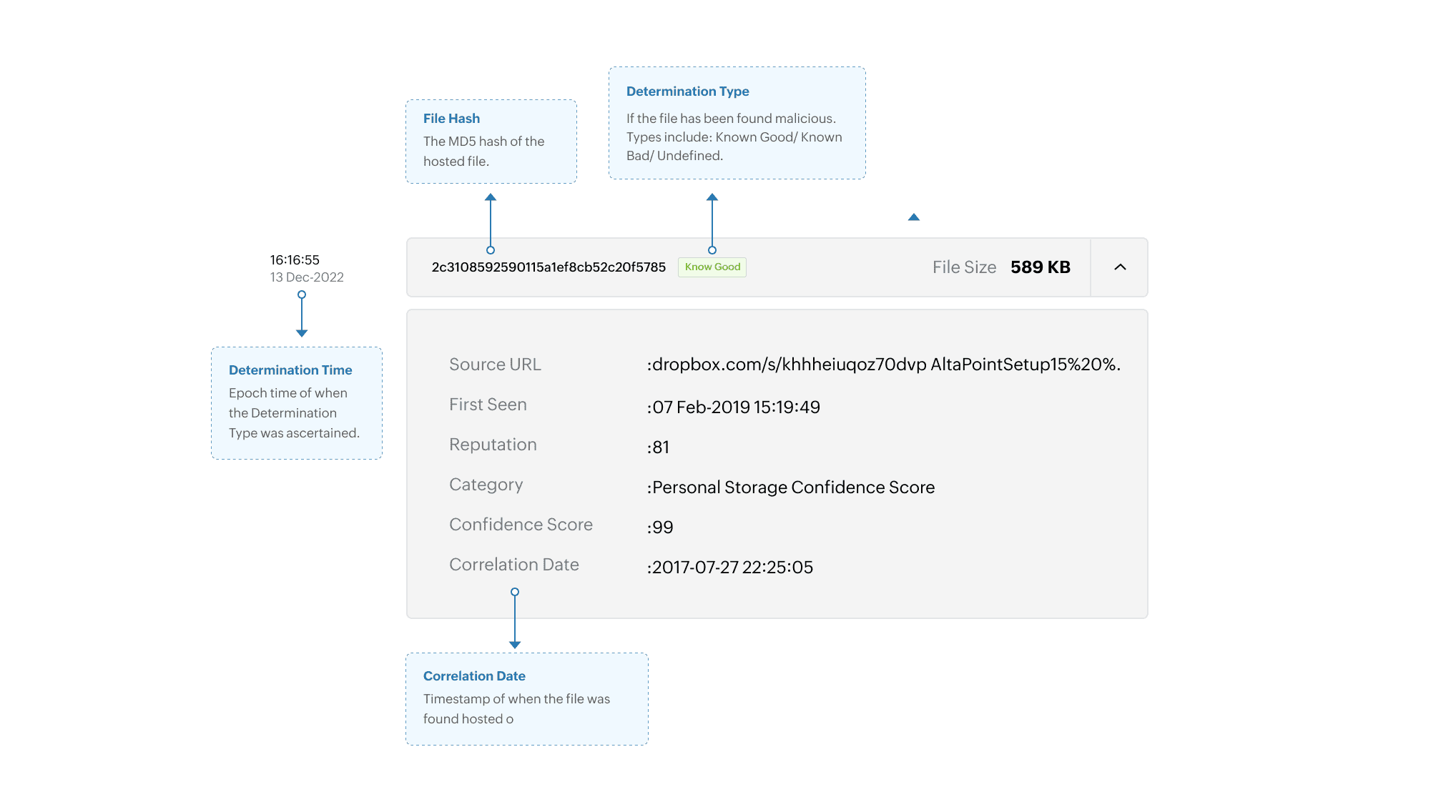

Threat Evidences

This section contains evidences recorded by the security vendor for different attacks attempted from the threat source.

VirusTotal

Configuration

To get the VirusTotal API key:

1. Visit https://www.virustotal.com and sign up for a VirusTotal account.
2. Sign in to VirusTotal and find your API key and go to your Username→ Settings→API Key.
3. Use the API Key provided by VirusTotal for integrating with Log360 Cloud.

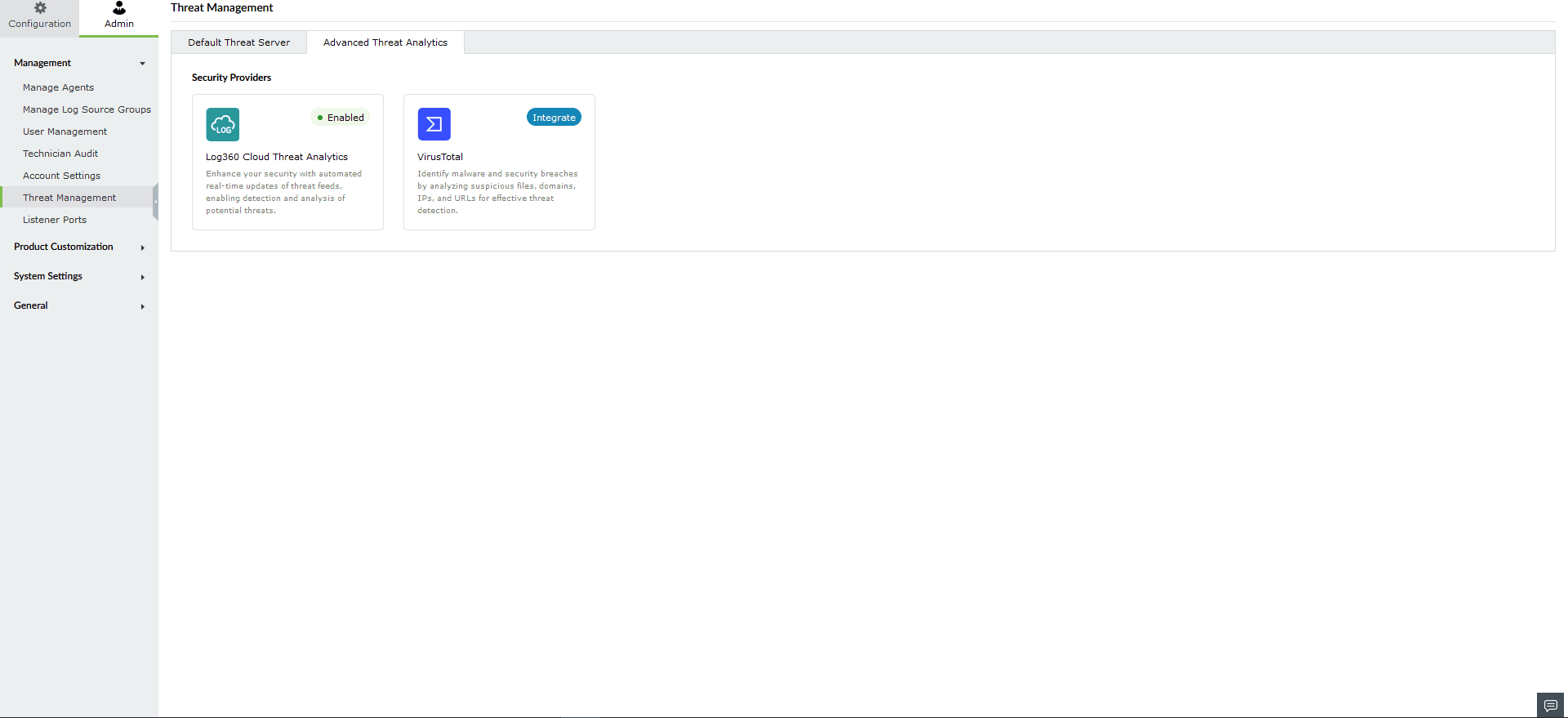

Once you have purchased the Advanced Threat Analytics add-on and applied the license, head to the Advanced Threat Analytics page.

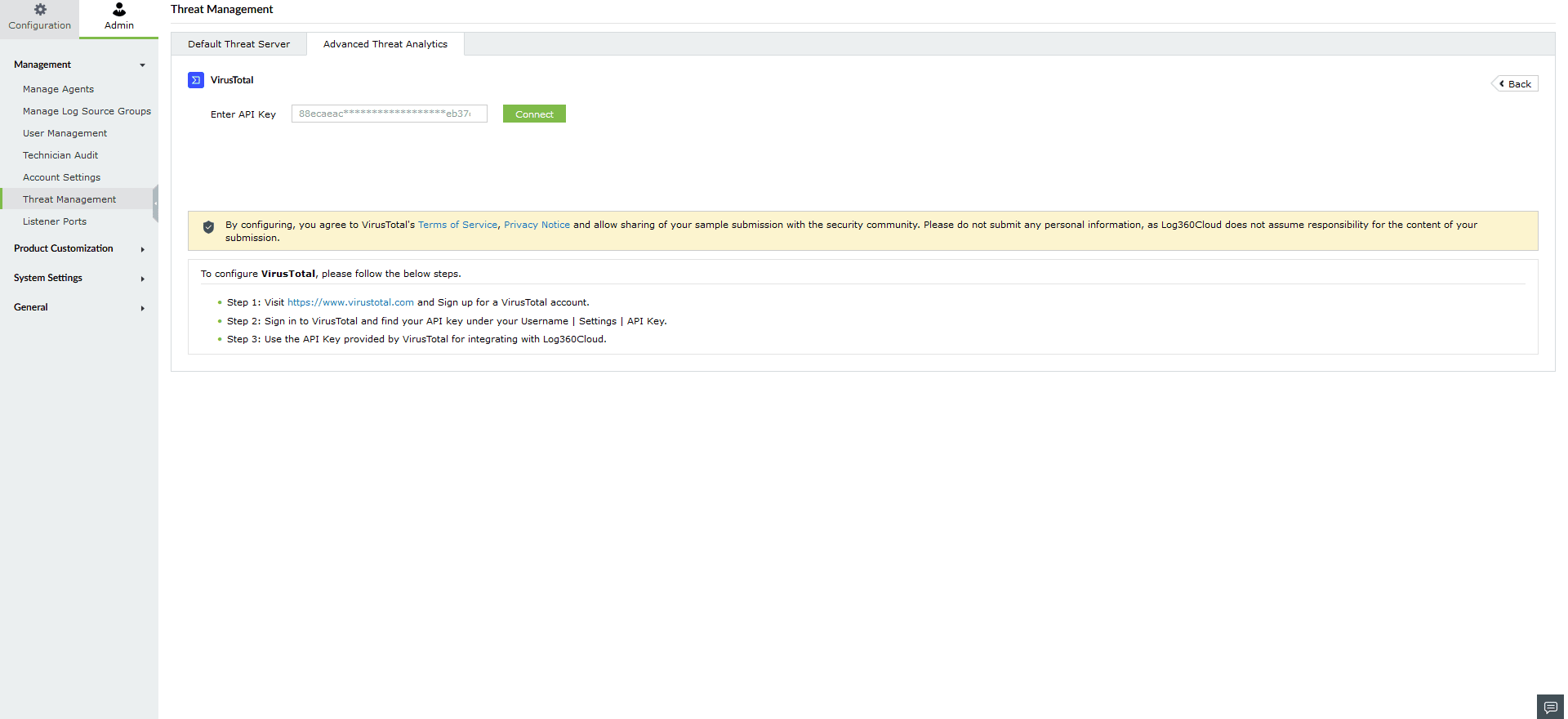

Paste the API key and click on Connect to finish configuring VirusTotal.

Analysis

In Log360 Cloud, users can access the data from VirusTotal through the Incident Workbech. Learn how to invoke the Incident Workbench from different dashboards of Log360 Cloud.

Select any IP or Domain to analyze in the Workbench. You can access the following data:

• VirusTotal Info

  This section contains the Detection Score of the Threat Source, which is the number of security vendors who have flagged the source as risky out of all the security vendors. Along with this, the basic details and the geo info of the Threat Source are also available.



• Security Vendor Analysis

  This section contains the individual analysis of all the security vendors.



Click on the search icon in the top left corner to filter based on Security Vendor, Analysis Category, and Analysis Result.



Here are the Analysis Categories:

• Malicious
• Suspicious
• Harmless
• Undetected
• Timeout



• Whois Info

  This section contains the Whois information of the threat source domain.



• SSL Certificate

  This section contains details of the SSL certificate issued to the Threat Source and who issued it.



• Related files

  This section maps the relationship of the files to the IP address in following ways:

  • Files communicating with the IP address
  • Files downloaded from the IP address
  • Files containing the IP address



• Resolutions

  This section ists the past and current IP resolutions for a particular domain.
