How to set up AD Connector in Endpoint Central

AD Connector acts as a communicator between the Central Server and Domain Controller. It retrieves the information from the domain controller and sends it to the Central Server. To set it up effectively, configure a distribution server in same remote office as the Domain controller.

Table of contents

  1. Steps to configure remote office
  2. Steps to set up an AD Connector in Endpoint Central



Steps to Configure Remote Office

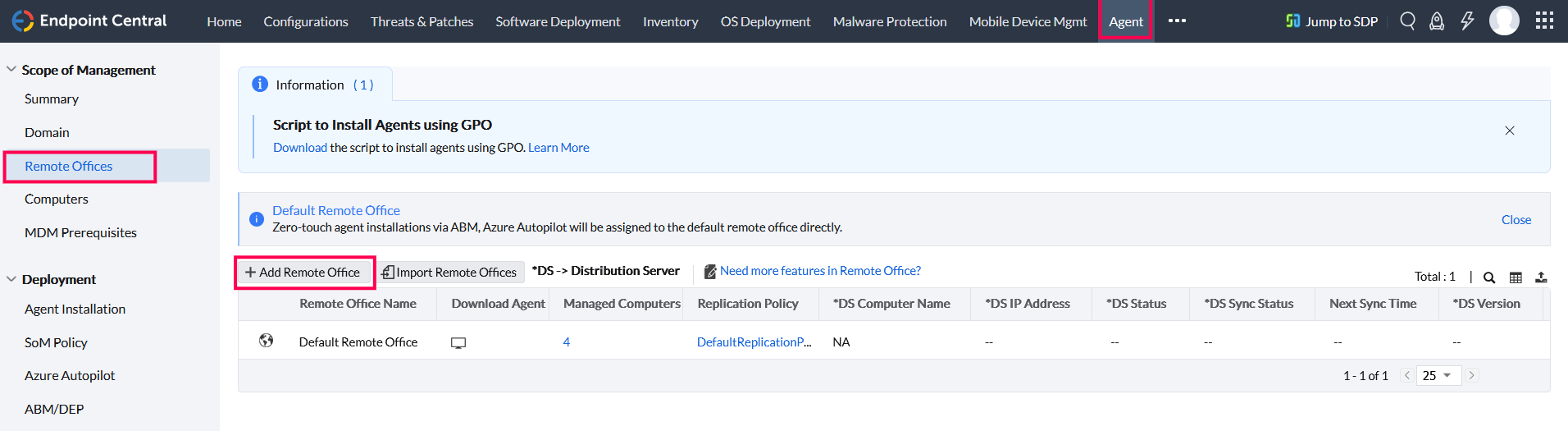

  • In the Server console, navigate to the Agent > Remote Office
  • Click Add Remote Office and fill in the ncessary details
  • Choose the communication type as through a distribution server. To know more, click here
  • Set up a distribution server in the required device in the selected remote office.

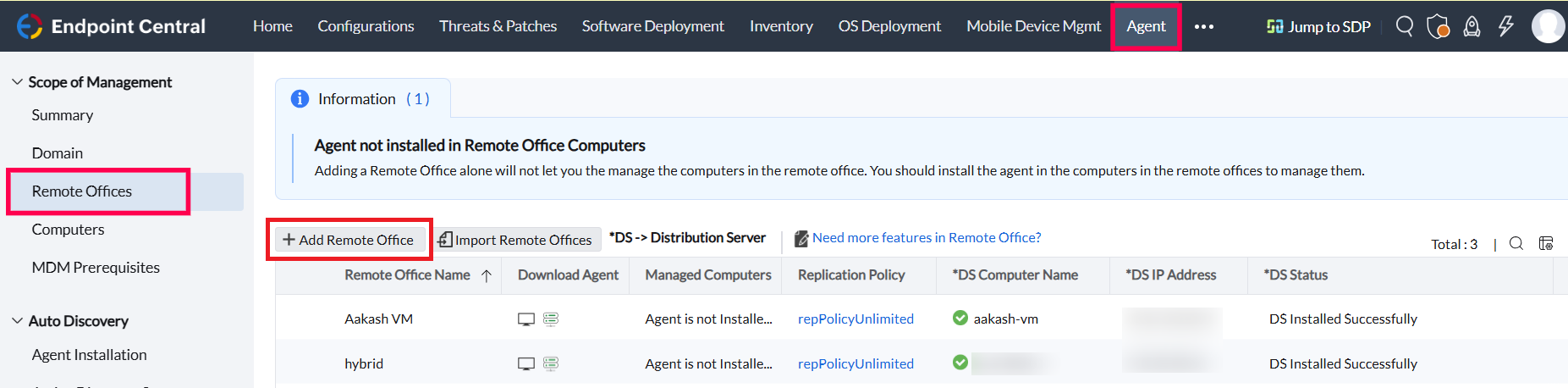

Adding Remote Office

Steps to set up an AD connector in Endpoint Central

Note:
1. AD Connector must be able to reach both Domain Controller and Central Server
2. Once AD Connector is configured, AD Sync will be initiated automatically for that specific domain

  • Navigate to Agent > Domain > Add Domain
  • Click Active Directory from the drop down

    • If you want to configure AD Connector for existing domain, Navigate to the actions menu and select Modify Domain

  • If the domain controller will not be reachable from Central Server, enable Domain controller is not directly reachable and select AD Connector from drop down

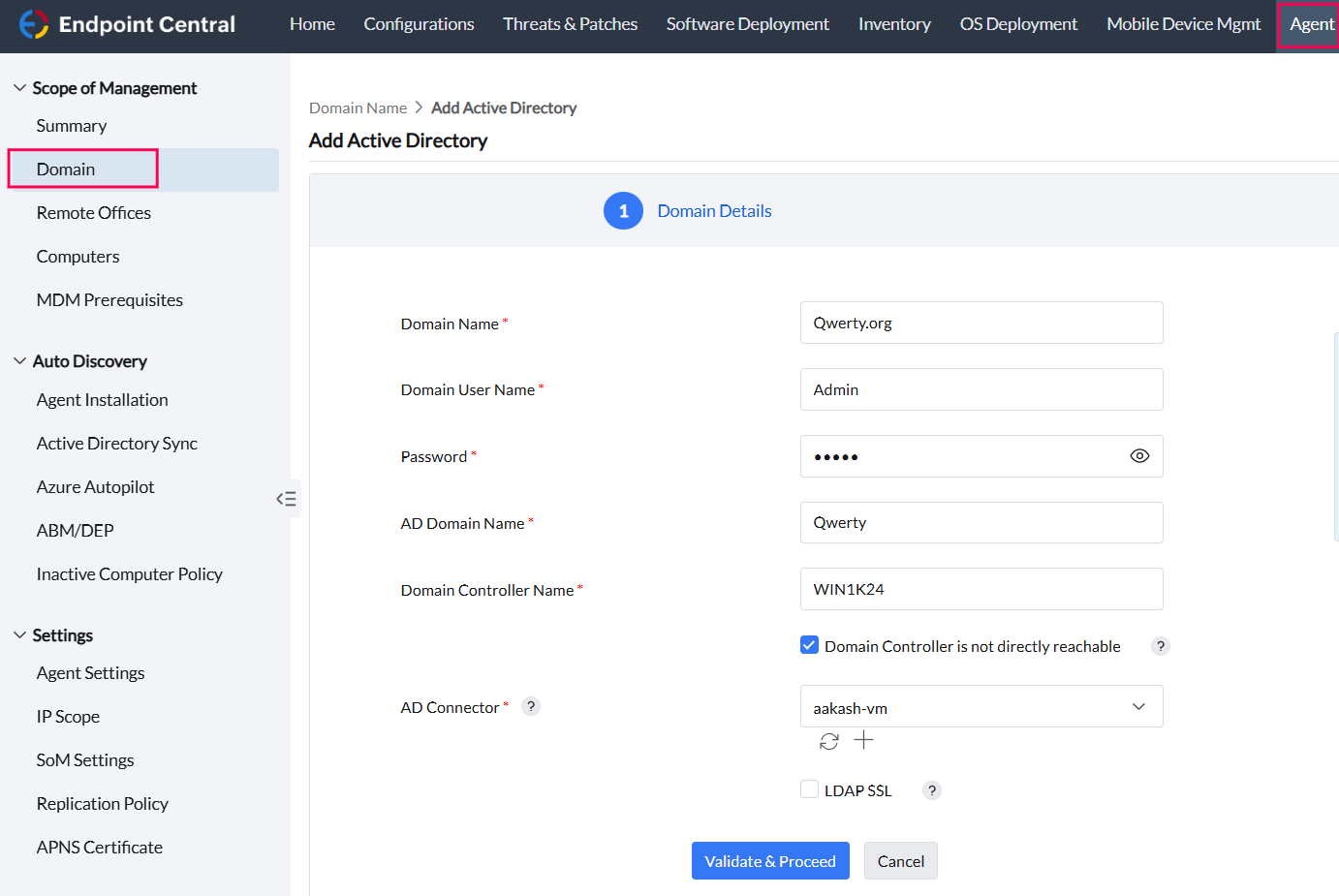

add ad connector
