How to configure SAML single sign-on for LucidChart

ADSelfService Plus supports Active Directory (AD)-based single sign-on (SSO) for LucidChart logins and many other SAML-enabled enterprise applications. When LucidChart SAML SSO is enabled, users only have to log in to ADSelfService Plus, the identity provider, once. After logging in, users can securely access their LucidChart accounts without having to enter their usernames and passwords again.

ADSelfService Plus supports identity provider (IdP)-initiated SSO for LucidChart logins.

IdP-initiated LucidChart SSO: Users need to log in to the ADSelfService Plus user portal first, and then click LucidChart in the Applications tab to access LucidChart.

Follow this guide for setting up LucidChart SSO logins

Configuring your Active Directory domain in ADSelfService Plus

Get the detailed steps here.

Getting the LucidChart SAML SSO details from ADSelfService Plus

  1. Log in to ADSelfService Plus with admin credentials.

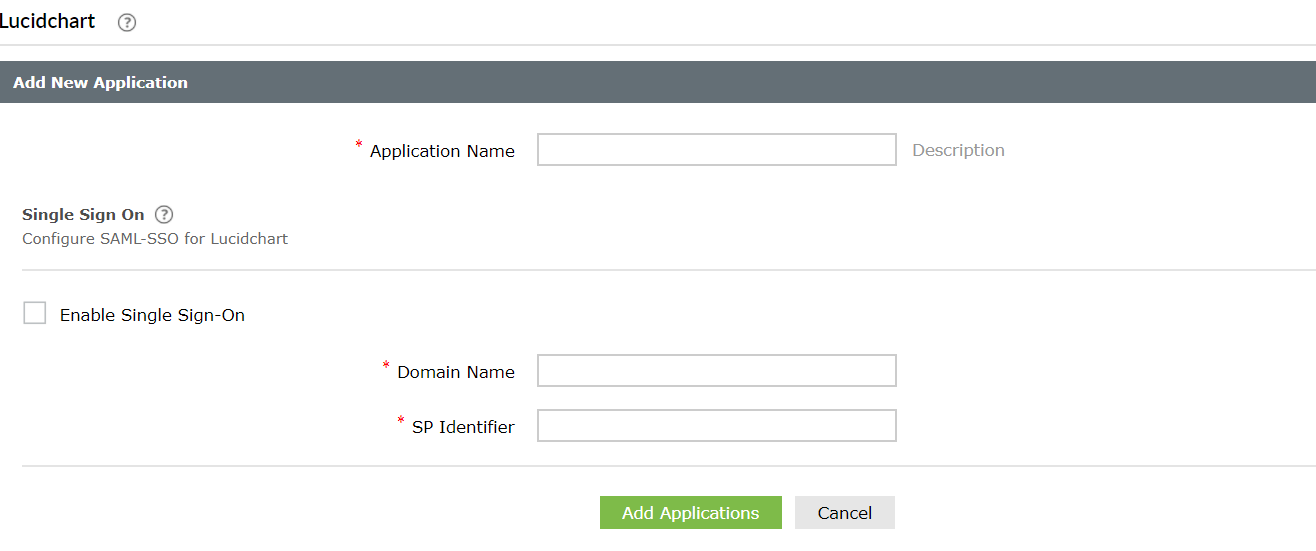

  2. Go to the Application tab → Add Application, and select LucidChart from the applications displayed.

    lucidchart-configuration

  3. Enter the Application Name and the Description.
  4. Select Enable Single Sign-On.
  5. Enter the Domain Name of your LucidChart account. For example, if you use johndoe@lucidchart.com to log in to LucidChart, then lucidchart.com is the domain name.
  6. Enter the SP Identifier. Make sure the SP Identifier is in the format: https://www.lucidchart.com/saml/sso/your_domain.
  7. Click Add Application.

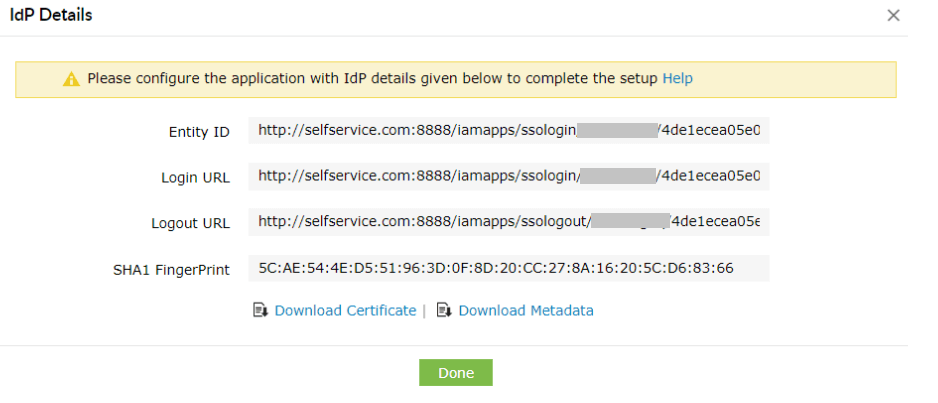

  8. In the pop-up that appears, download the Metadata file.

    lucidchart-idp-details

  9. Configuring SAML SSO settings in LucidChart

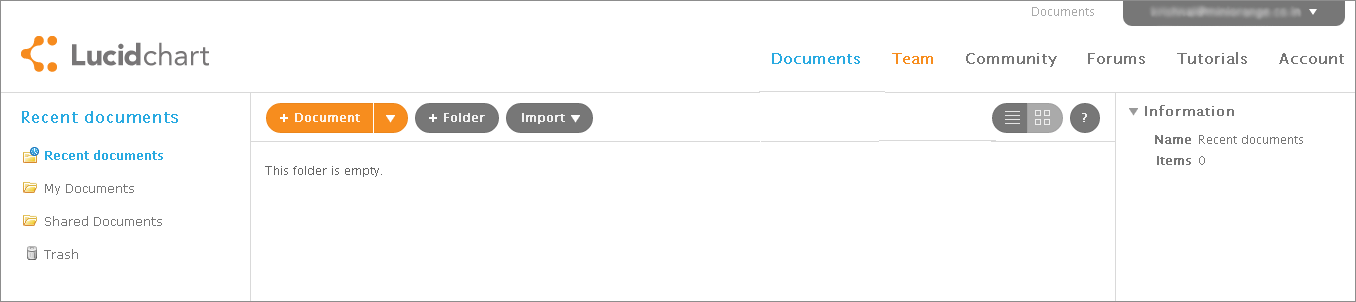

  10. Configuring SAML SSO settings in LucidChart.

    lucidchart-admin-portal

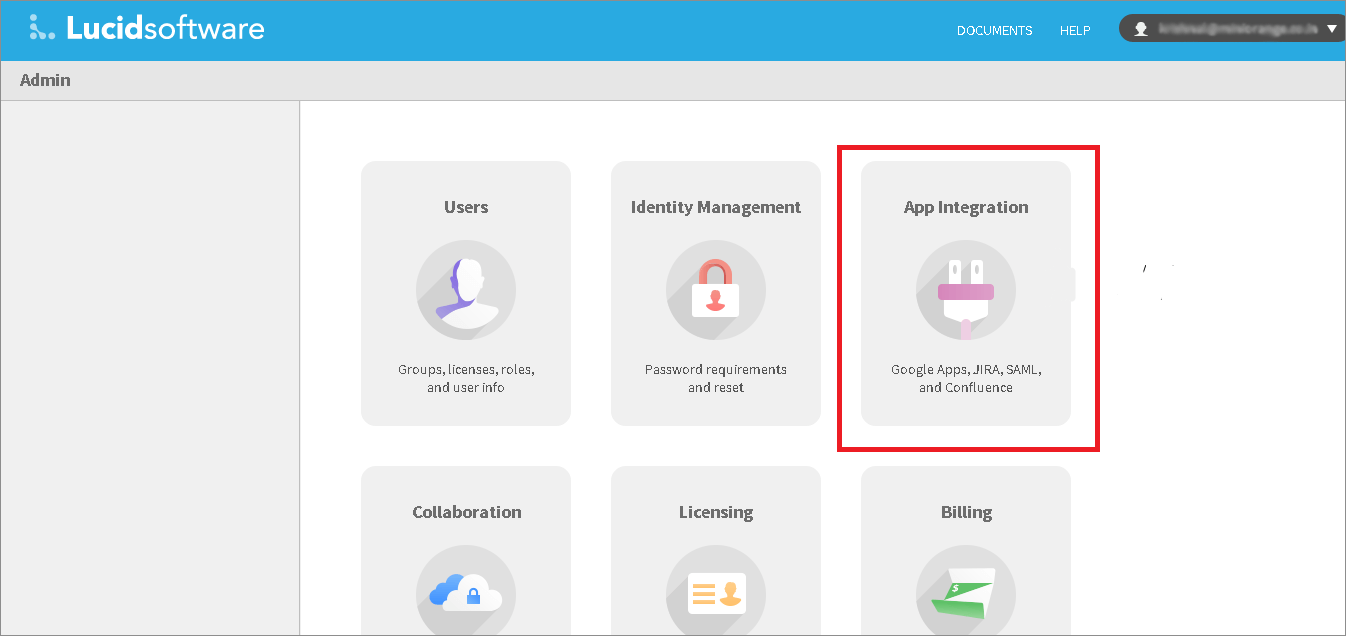

  11. Go to Team → App Integration.

    app-integration

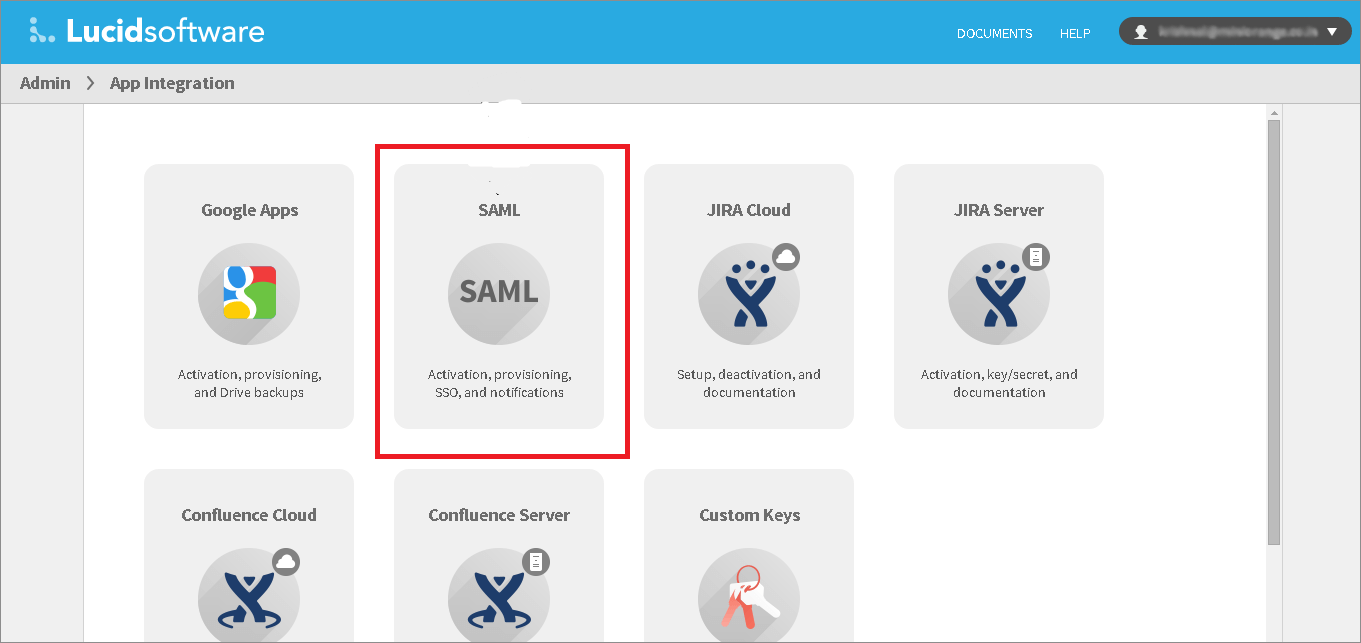

  12. Select SAML.

    lucidchart-saml-integration

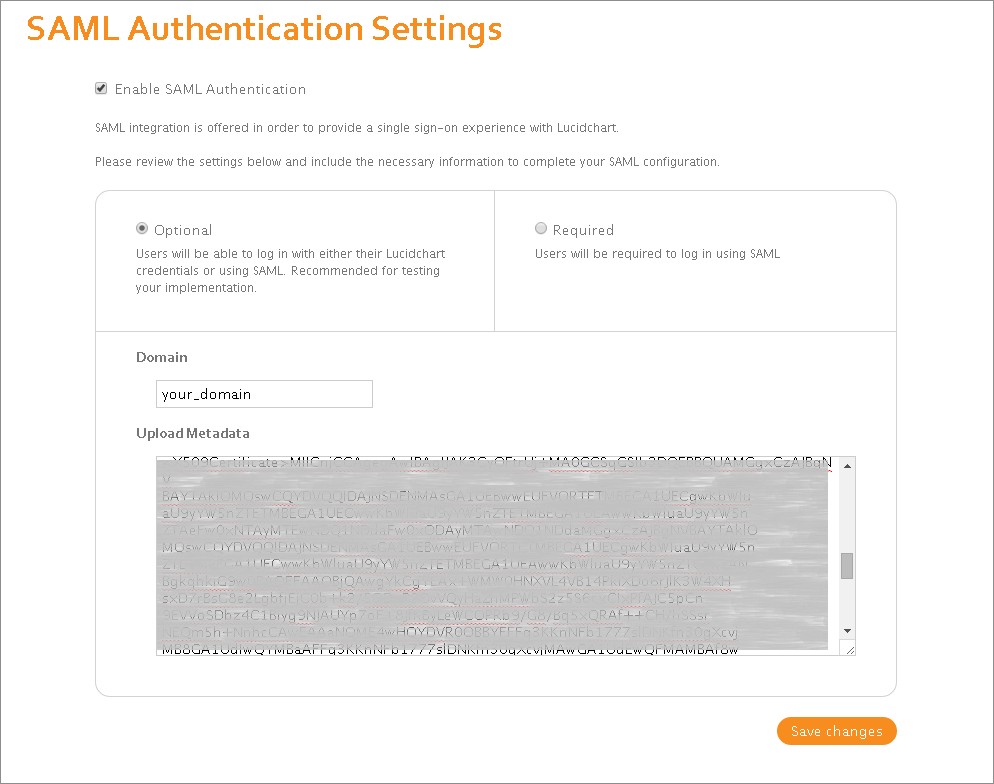

  13. Under the SAML Authentication Settings, select Enable SAML Authentication.
  14. Select Upload Metadata to upload the metadata file from ADSelfService Plus. Refer to step 8.

    saml-authentication-settings

Your users can now log in to their LucidChart accounts automatically using single sign-on.
