How to configure single sign-on for ServiceNow
ADSelfService Plus supports Active Directory (AD)-based single sign-on (SSO) for ServiceNow and any other SAML-enabled application. Upon enabling SSO for ServiceNow in ADSelfService Plus, all users have to do is simply log in to their Windows machines using their AD domain credentials. Once logged in, users can securely access ServiceNow in one click without having to enter their username and password again.
ADSelfService Plus supports both Identity Provider (IdP) and Service Provider (SP)-initiated SSO for ServiceNow.
IdP-initiated SSO for ServiceNow: Users need to log in to the ADSelfService Plus self-service portal first, and then click on the ServiceNow icon on the Applications dashboard to access ServiceNow.
SP-initiated SSO for ServiceNow: Users can access their ServiceNow domain via a URL or bookmark. They will automatically be redirected to the ADSelfService Plus portal for login. Once they've signed on, they'll be automatically redirected and logged into the ServiceNow portal.
Follow the step-by-step guide given below for ServiceNow SSO
Before you begin
Download and install ADSelfService Plus if you haven’t already.
Configuring your Active Directory domain in ADSelfService Plus
With ADSelfService Plus, you can use the existing AD domain credentials of users for authentication during SSO. So, first you need to configure an AD domain in ADSelfService Plus to enable SSO for ServiceNow.
ADSelfService Plus will try to automatically add all the domains that it can discover in your network. If your domains are automatically added, skip to Step 9; otherwise, follow Steps 1-8 to add them manually.
- Launch the ADSelfService Plus web console and log in using admin credentials.
- Click the Domain Settings link available on the top-right corner of the application.
- An Add Domain Details window will appear.
- In the Domain Name field, enter the name of the domain you want to add.
- In the Add Domain Controllers field, click Discover. ADSelfService Plus will try to automatically discover the domain controllers associated with the domain.
- If the domains are not auto-discovered, then enter the domain controller name in the field provided, and click Add.
- You can leave the authentication fields empty if you're not going to use the end user self-service features of ADSelfService Plus.
- Back in the Add Domain Details window, click Add to complete adding the Active Directory domain in ADSelfService Plus.
Getting the SAML details from ADSelfService Plus
- Navigate to Configuration → Self-service → Password Sync/Single Sign On.
- Click ServiceNow in the list of applications provided.
- Click Download SSO Certificate in the top-right corner of the screen.
- In the pop-up that appears, click Download metadata file and save the XML file. Open the file in a text editor and copy its content.
Configuring SSO settings in ServiceNow.

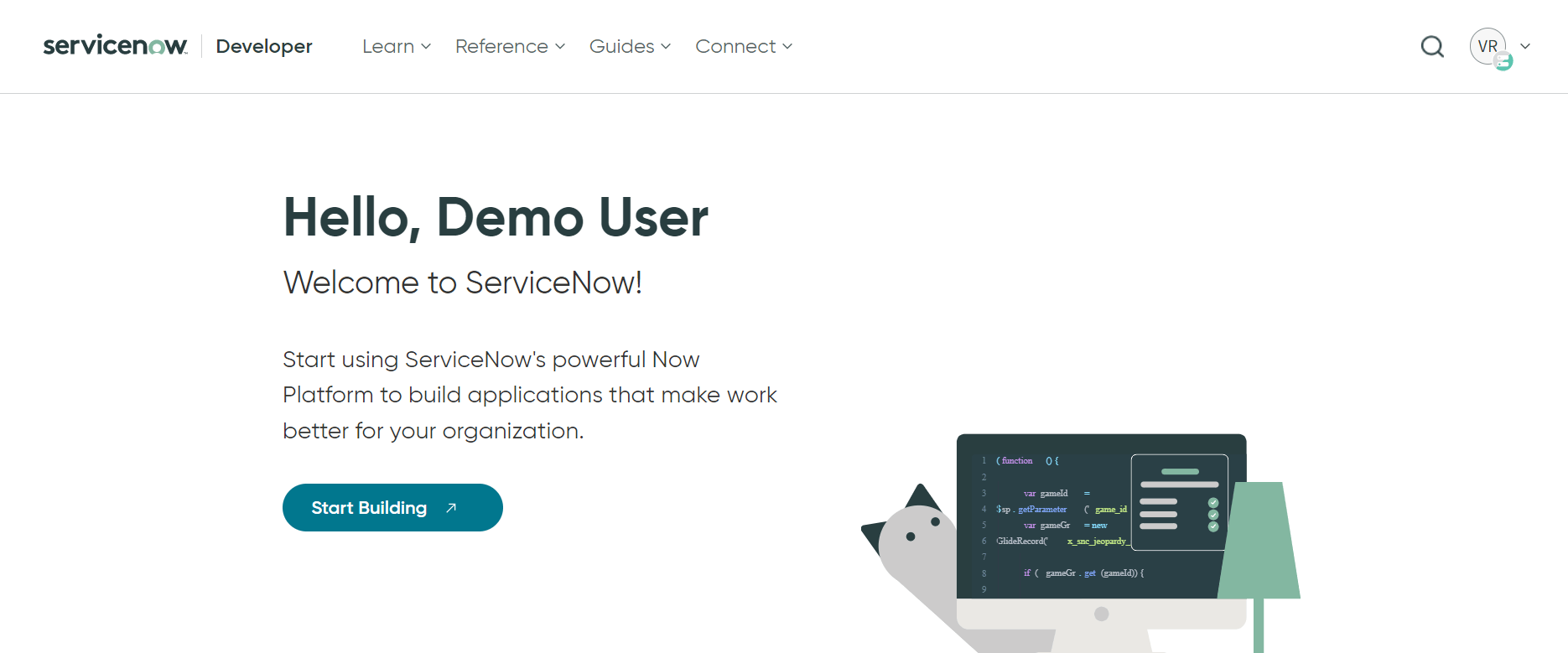

- Log in to ServiceNow with administrator credentials.
- Navigate to Manage → Instance.

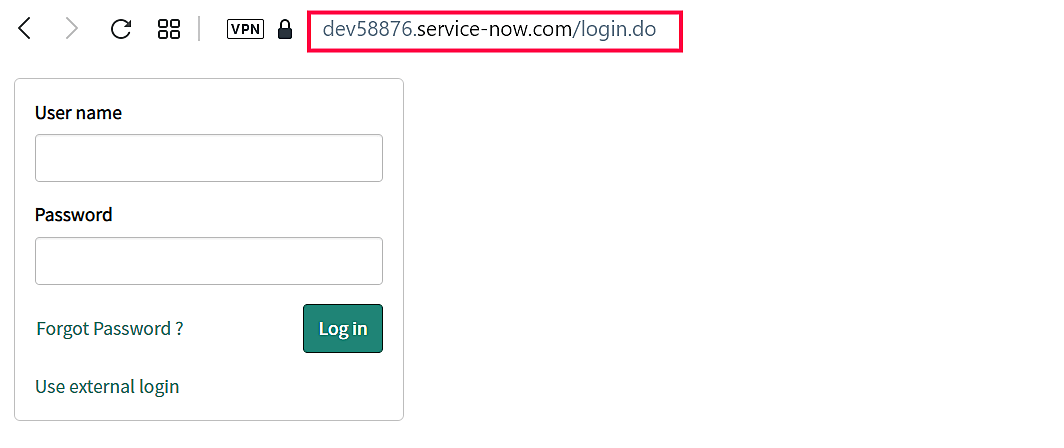

- In the My Instance page, click on the instance URL. Also, note down this value. We will need it while configuring ServiceNow with ADSelfService Plus.
- In the left pane, navigate to Multi-Provider SSO → Identity Providers and then click New.
Note: If Multi-Provider SSO plugin is activated in your instance, Please follow this steps.

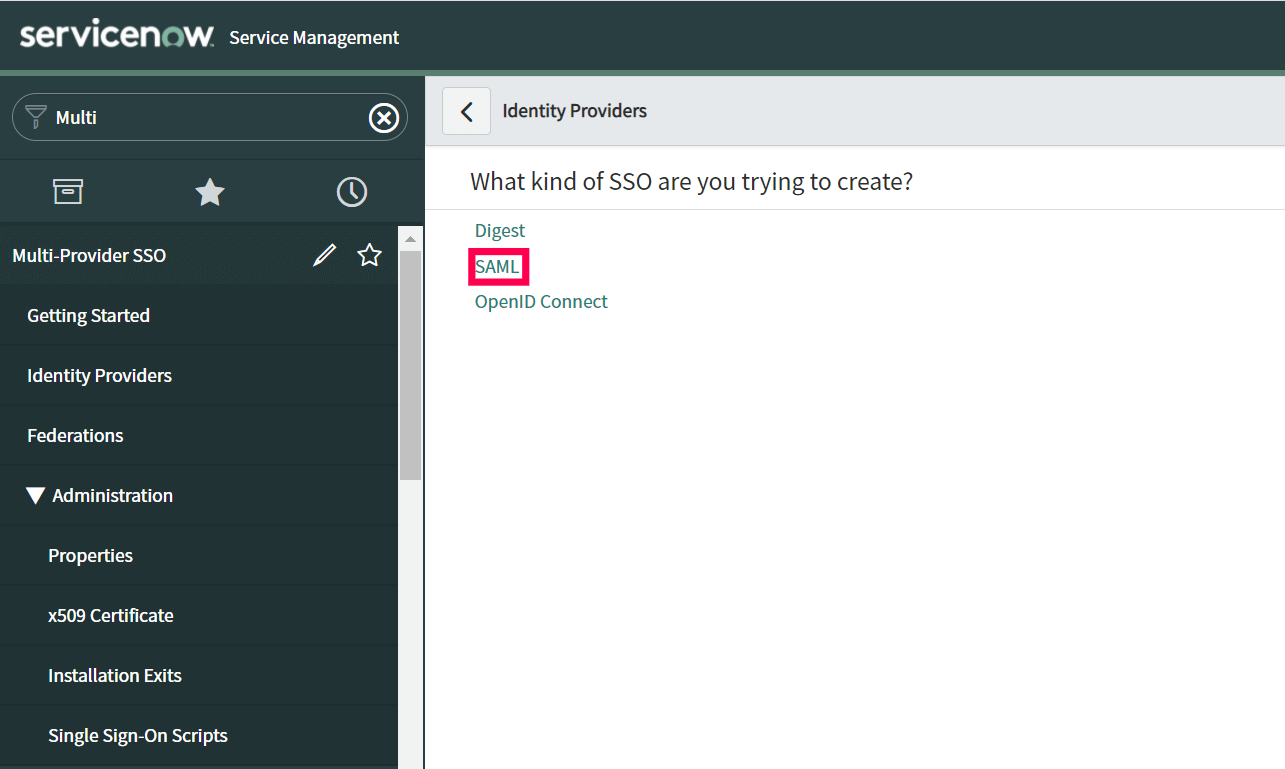

- In the What kind of SSO are you trying to create? section, select SAML

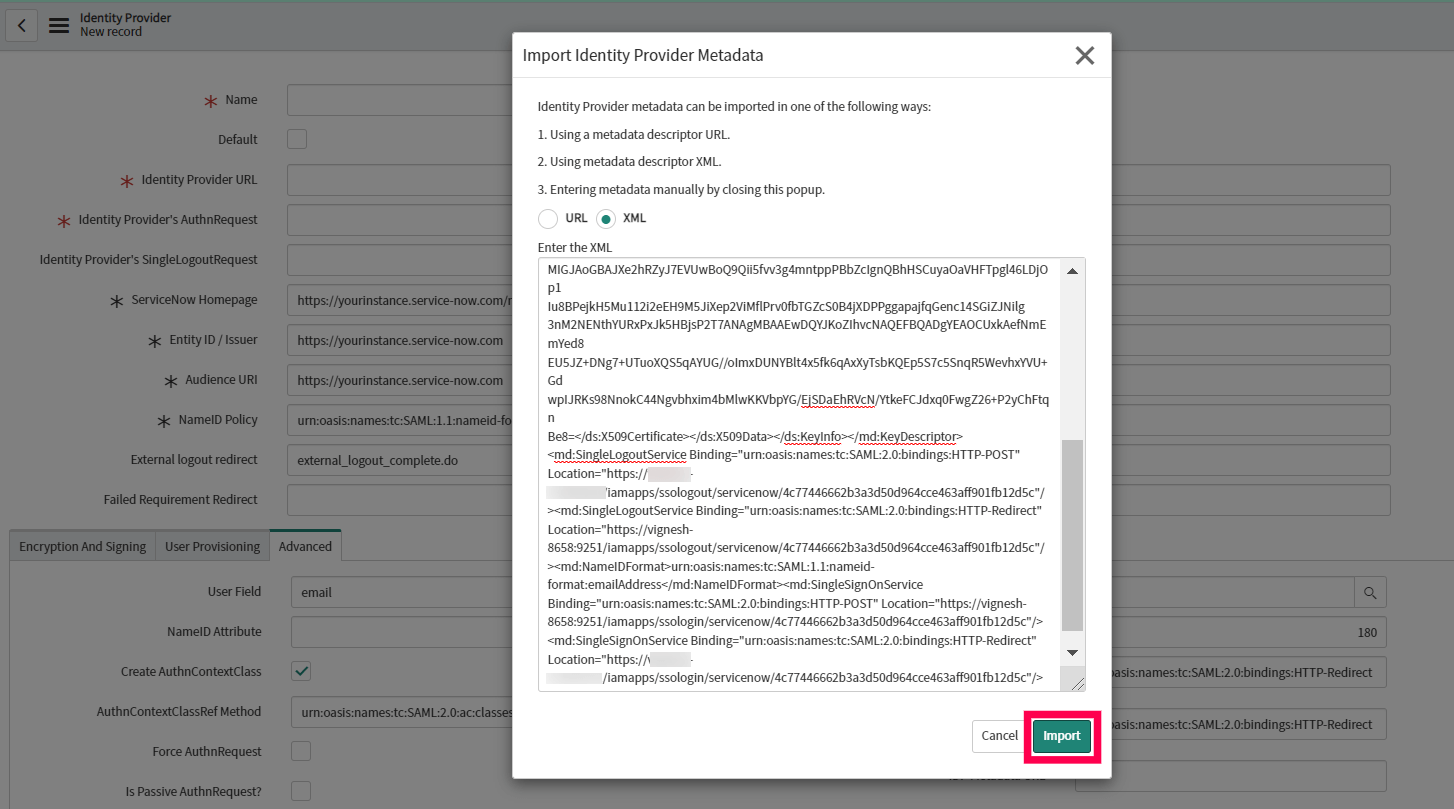

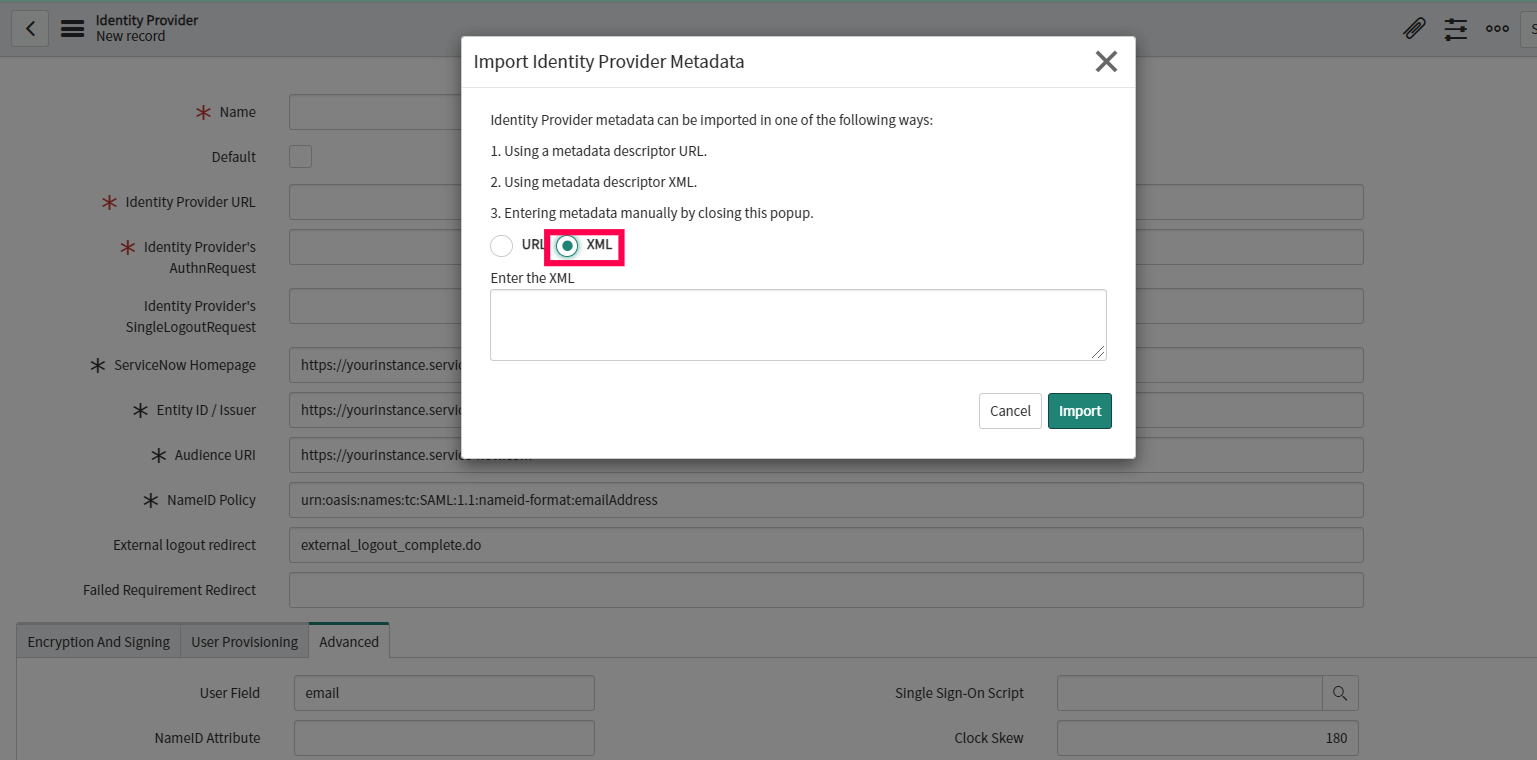

- In the Import Identity Provider Metadata pop up that appears, select XML and paste the XML file content you had copied in Step 12.
- Click Import.

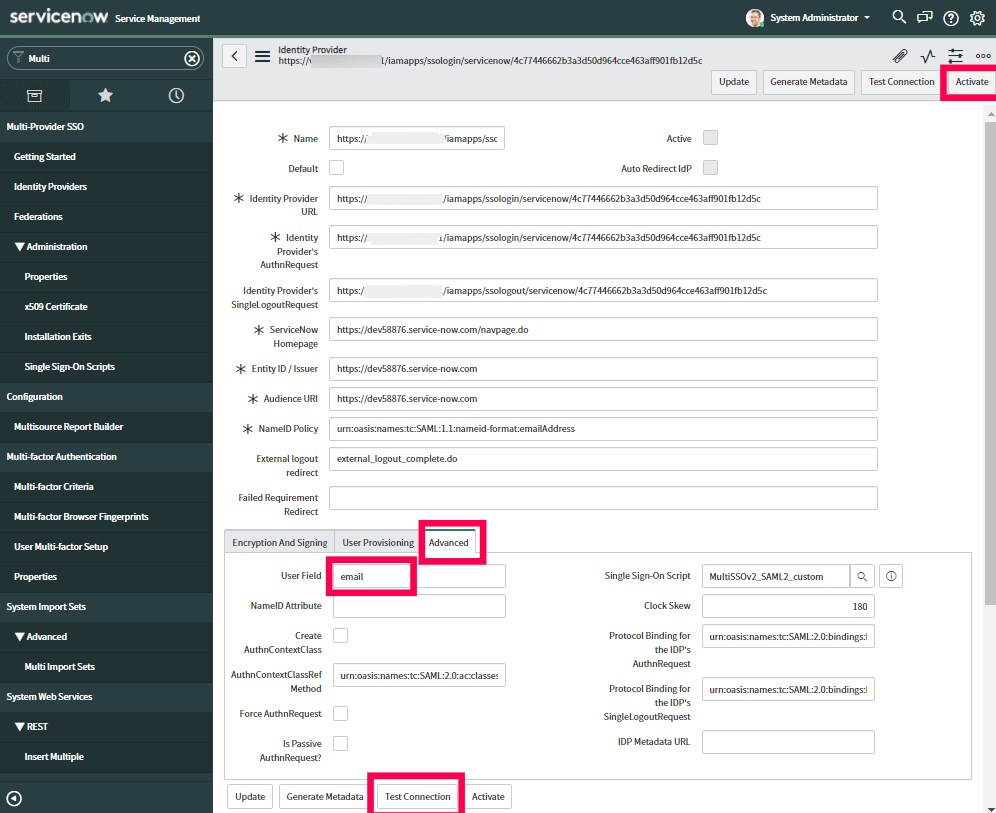

- All the required fields will be auto-filled. Scroll down and click Advanced tab. Make sure in the User Field, the value “email” is entered.
- Click Test Connection. You will be asked to log into ADSelfService Plus.
- One the connection is successful, click Activate.

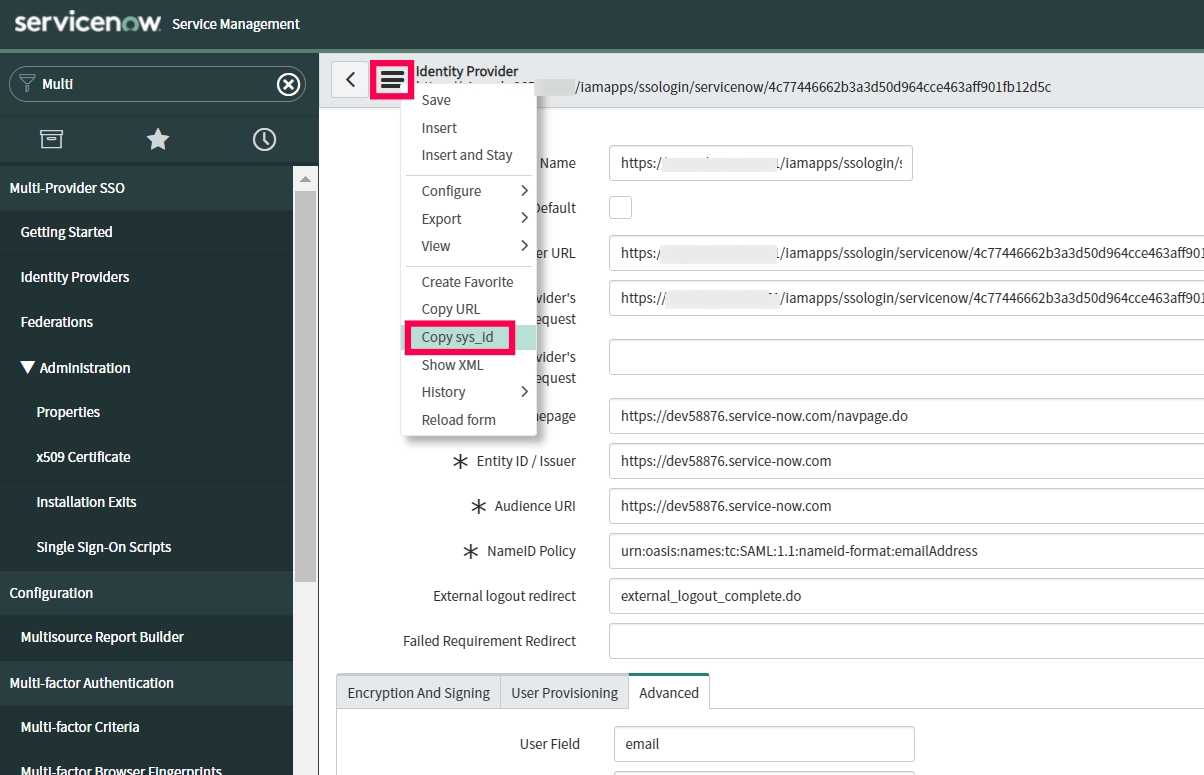

- Now click on the Additional Actions icon at the top near the identity provider title and select Copy sys_id. Paste the value in a note and keep it safe.

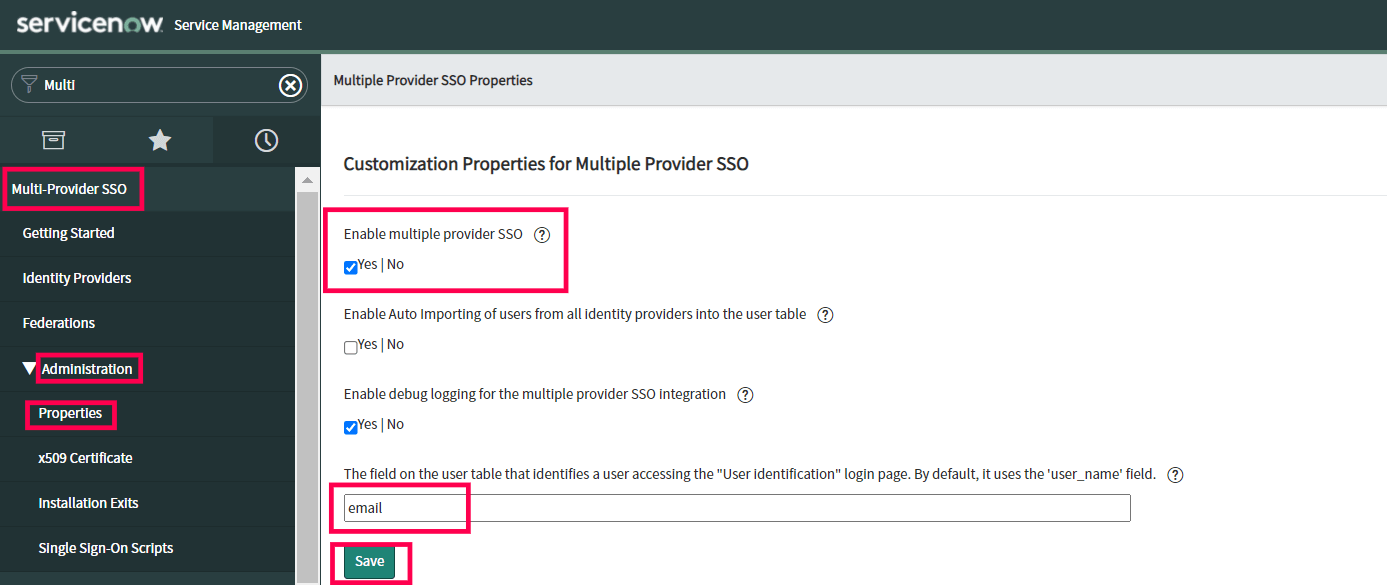

- In the left pane, navigate to Multi-Provider SSO → Administration → Properties.
- Make sure that Enable multiple provider SSO in enabled.
- In the field for user identification, change ‘user_name’ to email as the value.
- Click Save.
- In the left pane, navigate to User Administration → Users.
- Select a user for whom you want to enable SSO and click his/her username.

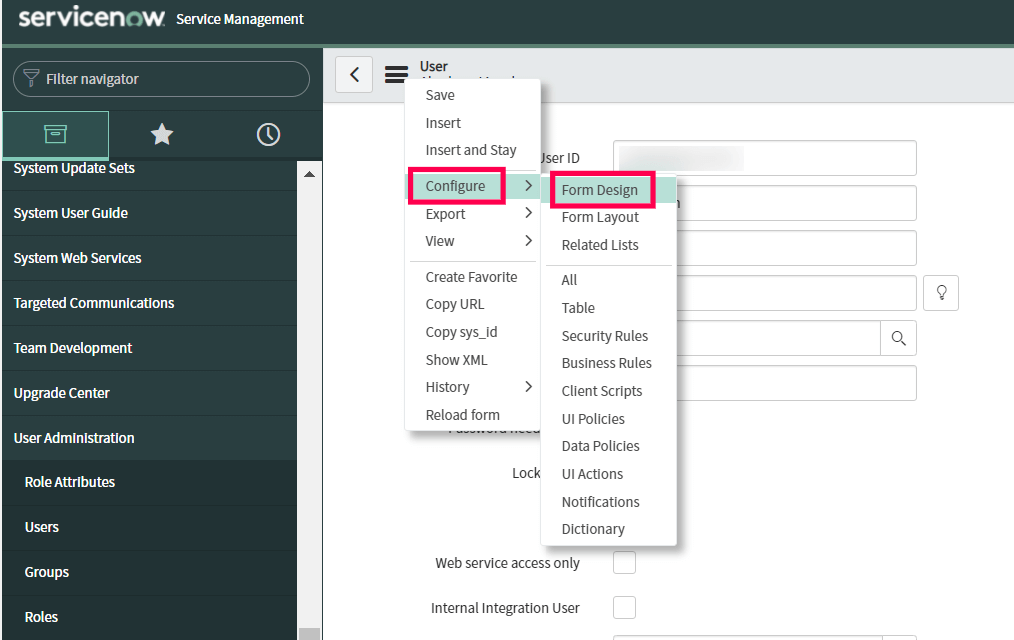

- Now click the Additional Actions icon and select Configure → Form Design.

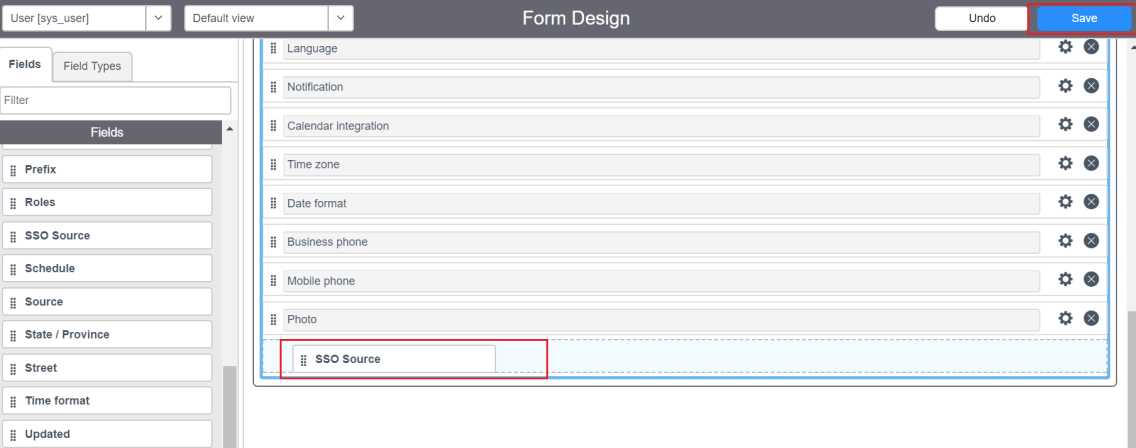

- Drag and drop the SSO source field from the left pane into the user’s form and click Save.
- Close the form design tab and go back to the user configuration page. You can notice the SSO source field added to the user’s form

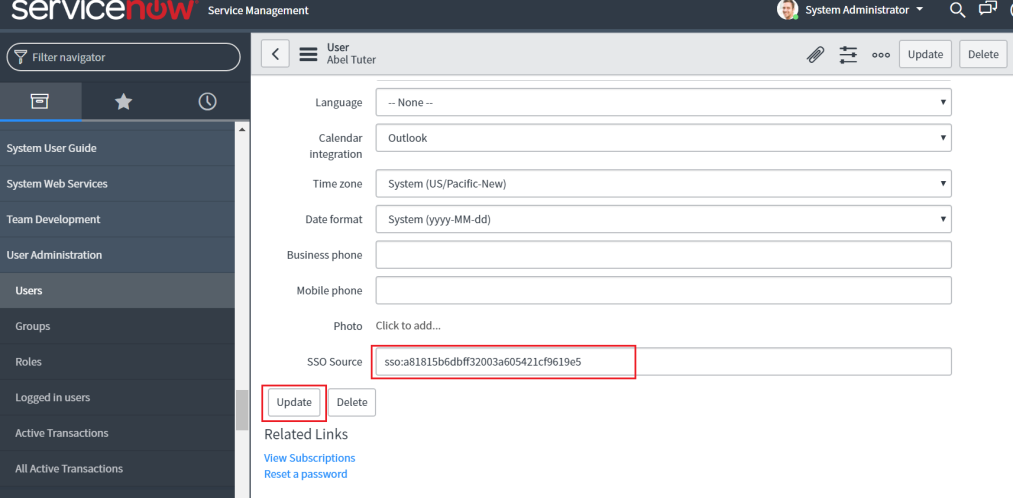

- In the SSO source field, paste the sys_id you had copied in step 23. Append “sso:” before the sys_id value.
- Click Update.
- Repeat steps 29-34 for other users to whom you want to enable SSO.
Adding your ServiceNow domain in ADSelfService Plus and enabling SSO.

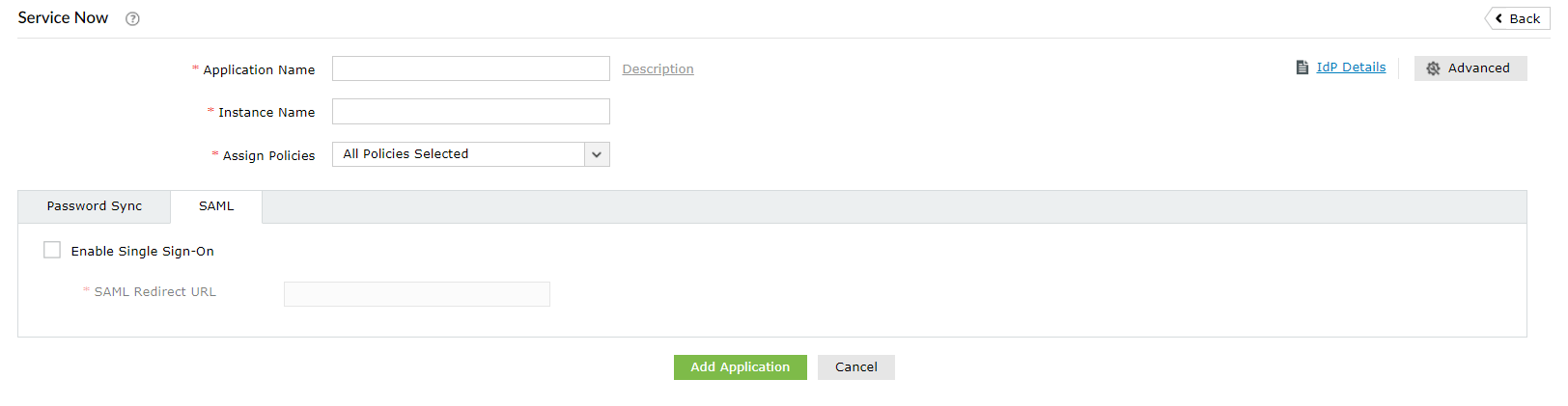

- Now, switch to ADSelfService Plus’ ServiceNow configuration page.
- Choose Single sign-on under Modules.
- In the SAML Redirect URL field, enter the instance URL from Step 15.
- In the Domain Name field, enter the domain name for which you just enabled SSO. For example, if you use firstname.lastname@example.org to log in to ServiceNow, then thinktodaytech.com is the domain name.
- In the Display Name field, provide an appropriate display name.
- In the Available Policies field, click the drop-down box and select the policies for which you wish to enable SSO. The policy you select will determine which users have the SSO feature enabled.
Note: ADSelfService Plus allows you to create OU and group-based policies for your AD domains. To create a policy, go to Configuration > Self-Service > Policy Configuration > Add New Policy. Click Select OUs/Groups, and make the selection based on your requirements. You need to select at least one self-service feature. Finally, click Save Policy.
- Click Save.
Your users can now log into their ServiceNow accounts automatically using single sign-on.
