Sensor

What are Sensors

Endpoint Central offers robust inventory management by collecting a wide range of device data, including hardware details, software information, certificates, and more. However, you may occasionally need to monitor specific device attributes to gain deeper insights into your environment.

Sensors are integrated as a resource in Workflows, enabling you to automate the process of fetching and utilizing required device attributes efficiently. This integration simplifies monitoring and ensures that critical data is always at your fingertips

Creating Sensors

To create a new sensor

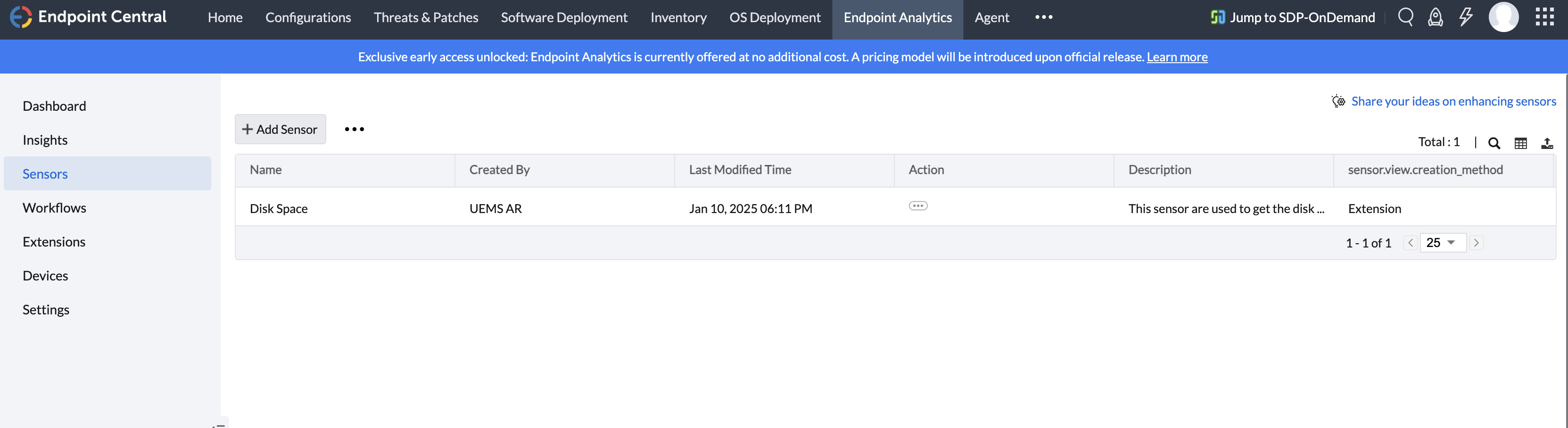

1. Click on DEX, and then select Sensors from the left navigation menu.

2. Click Add Sensor button

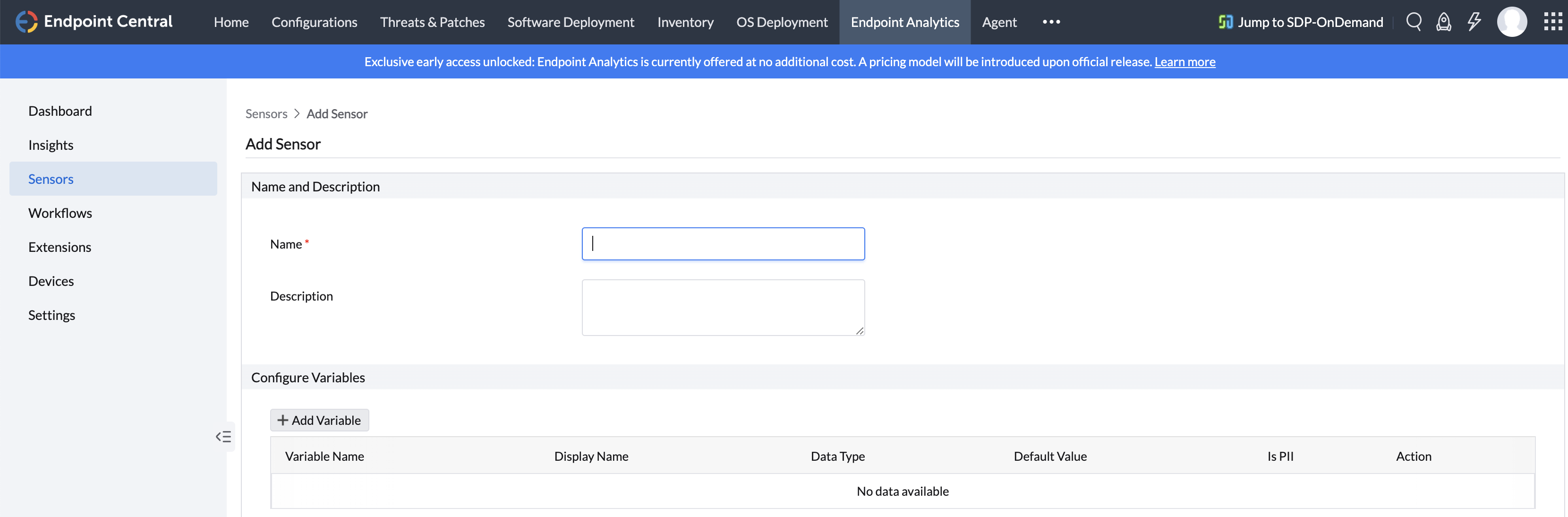

3. Enter a descriptive Name and description for your sensor



4. Click Add fields to define data that you want to collect from device

   1. Enter Display name for field, which will be visible in Endpoint Central console

   2. Enter Field name that is used in powershell script

   3. Specify whether the data contains Personally Identifiable Information (PII)

   4. Select the appropriate data type

   5. Add a brief Description of the field.



5. In the Script Editor, implement the business logic to retrieve properties from Endpoints and assign them to the predefined variables from the cases above.



6. Specify the arguments to be passed to the script when executed.

7. Specify the number of sensor runs to retain. This ensures that only the configured number of runs are stored, helping to optimize performance and manage storage efficiently.

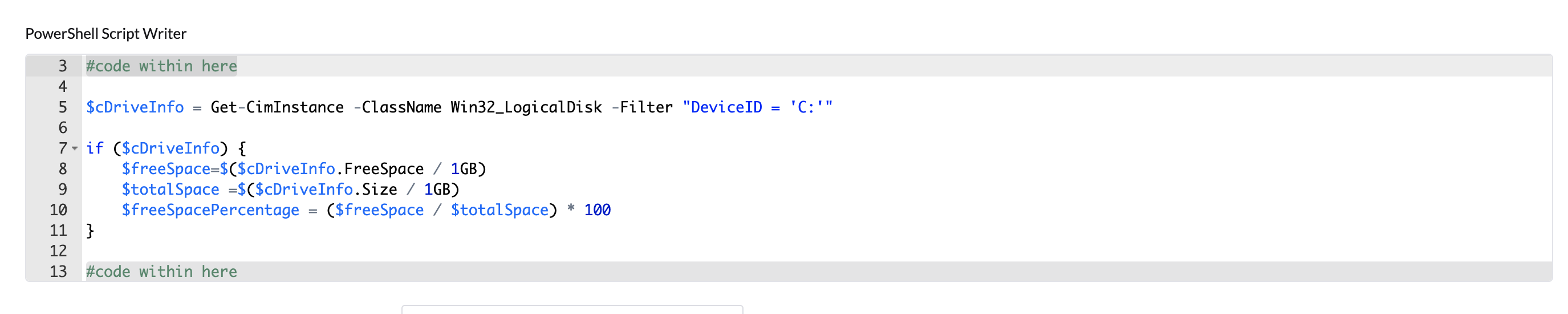

   For example, to retrieve the percentage of free disk space on a drive, you can use the following PowerShell command:



Use of Sensors

• Custom Intelligence: Monitor any system state that matters to your organisation and gain better visibility.

• Data-Driven Automation: Use sensor outputs as dynamic triggers within workflows.

• Flexible Reporting: Track and export custom data through dashboards and reports.

• Scalable Management: Deploy and manage sensors across device groups with centralised control.

Using Sensors in Workflows

Sensors can be integrated as stages in Workflows to retrieve specific device properties. The sensor’s output can then be used in the Switch stage to make data-driven decisions within workflow automation.For detailed steps on configuring sensors in workflows, refer to this document.

Permissions Required for Using Sensors

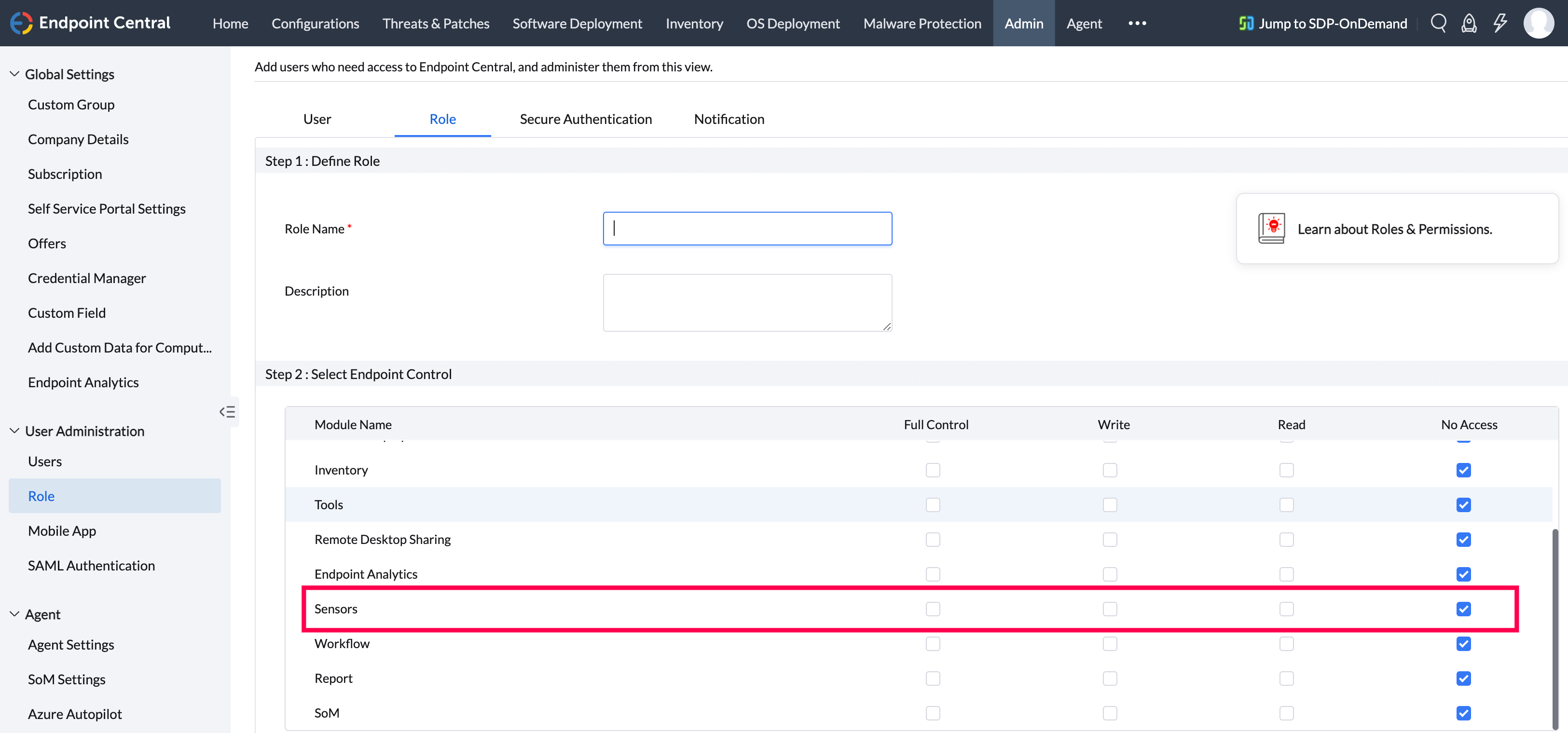

To grant user permissions for managing Sensors, follow these steps:

1. Select Admin from the top menu bar.

2. Under User Administration, click Role

3. Click on Add Role to create a new role or Modify existing role by clicking Modify from the action menu

4. In the Endpoint Central section, scroll down to the Sensors section and enable the appropriate permissions for the role.

   • Read: Allows view-only access.

   • Write or Full Control: Allows add,modify and delete Sensors.

5.
