Software metering allows you to monitor software usage in your enterprise. The Software Metering feature in Desktop Central enables you to get the following information of Windows endpoints in your network:
Statistics of software applications used in computers in your network
List of prohibited software applications in your network
Details of usage of software applications that help you plan your software application-related purchases
Status of the license compliance of software that helps you to plan for additional license purchases or cancel unused licenses
Software metering rules are rules that you can define to enable easy collection of software usage data for the computers in your network.
The following details are to be taken into consideration while adding rules:
File name * : This refers to the executable file name of a software application. You can get this information from the Version/Details tab in the Properties page of the executable file.
Original file name : In most cases, the original file name is the same as the name of the executable file. If a user has renamed the executable file of a software application, you can track the usage of that software application, based on its original file name.You can get this information from the Version tab in the Properties page of the executable file. If this information is not available, you can leave the text field blank.
Product name : This refers to the name of the product exclusive of the version number.
File version : This refers to the version of the executable file of a software application. If you want the agent to gather details about specific file versions, use an asterisk in the File Version box. For example, if you want the agent to gather details about all file versions beginning with 9, enter 9.* in the File Version box. You can get this information from the Version tab in the Properties page of the executable file. If this information is not available, you can leave the text field blank. If the text field is left blank, the usage details of all the versions of a particular software used in the network will be metered.
To find information about the above mentioned details, follow the steps given below:
Assume that you want to find information about the details of Cliq software.
Figure 1: Shortcut in Windows Explorer
Figure 2: File version
Figure 3: Original file name
Figure 4: Product name
You now have the required information to add rules.
You are required to add rules to monitor the usage details of specific software applications. To add rules, follow the steps given below:
The name you enter for the rule should be unique and descriptive. For example, if you have selected Adobe Flash Player, you can enter Monitoring Adobe Flash Player Usage as the name of the rule. Once you have used this name, you cannot use it as a name for any other rule.
You cannot add software metering rules for groups of software.

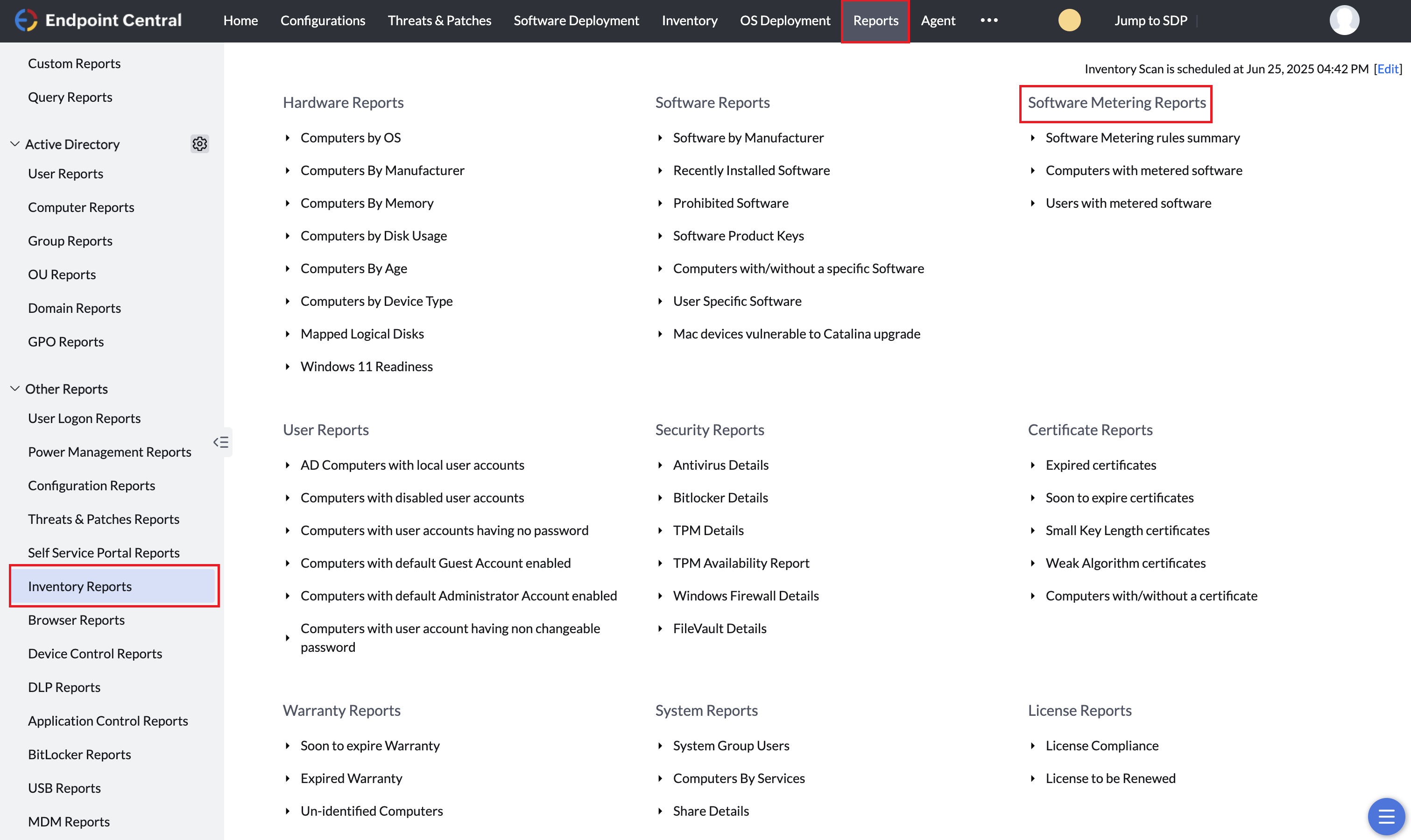

There are three types of software metering reports that help you make an informed decision about buying software applications and renewing licenses for existing software applications. The reports are as follows:
Software metering rules summary
Based on the rules added for metering of a particular software, this report provides the following details :
Computers with metered software
Users with metered software
The last 90 days data from the current date is stored in the Desktop Central report.
